MULTI SCREEN DISPLAY 6 SCREENS

DIGITAL SIGNAGE & SMART HOME > DIGITAL SIGNAGE

MULTI-SCREEN 6 SCREENS OUTPUT

Multi Screen Digital Signage

Content Manager

1 Year Standard Warranty

Call or Email for Quote

03-8069 1655/ 03-8069 1755

012-278 5731

sales@3wiredsys.com

for

Consultation,

Technical enquiries,
Recommendation or Demo

MH600H SPECIFICATION MODEL

DT Research MH600 Multi Display Screen

Intel Digital Signage

Intel Core™ i7 CPU, 4-Core CPU

No subscription fees

Web Base Easy Designer

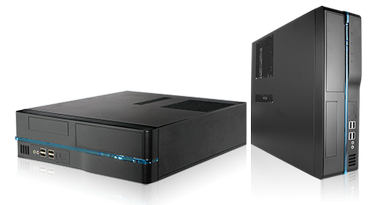

The DT Research MS600H Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient Intel Core™ i7 processor, the MS600H includes the latest graphics technology with up to 6 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS600H is capable of driving dynamic content on up to 6 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.

Drives up to 6 screens; Full-HD content supported on each screen
Support for multiple zones of content for each display wall
Content flexibility for image, flash and many multimedia file formats; stretched across multiple screens or played on a single screen
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)

Application Usage

Hotels, Retail, Cinema, Church, University, College

MODEL	MH600H
CPU	Intel® Core™ i7, 4 Core processor
RAM	8GB
STORAGE	500GB
OPERATION SYSTEM	Microsoft® Windows® Embedded 7 Standard 64-bit
DISPLAY RESOLUTION	1920x1080 @ 60Hz (x6), 1080P x 6 @12mbps/ 30fps, 2160P x 2@60mbps/ 30fps
NETWORK	RJ45 x 1 - 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
OUTPUT PORT	HDMI/ DVI-I/ DisplayPort/ Mini DisplayPort x 4/ USB x 10/ 3.5mm Audio Jack x 7/ Digital output/ Audio Out/ Microphone In
ENCLOSURE	Aluminium chasis + Steel + Plastic
POWER SUPPLY	300W ATX
WEIGHT	14.51 lbs/ 6.58 kg
TEMPERATURE / HUMIDITY	Operation: 0°C – 40°C; Storage: -20°C – 60°C/ 5% – 90% non-condensing
DIMENSION	3.75 x 13 x 15.5 in/ 95.3 x 330.2 x 393.7 mm

MS600H - 6 Output Multi-Screens Display

Various combination from 2 screens up to 6 screens on potrait/ landscape stretched across multiple screens or played on a single screen
