 HDMI HDBaseT Extender 4K2K
 HDMI HDBaseT Extender Basic
HDBaseT Extender

EVBM-M110

100m HDBaseT HDMI Extender
EVBM-M110 (110L/R) per pair  RM 2,086.00
EVBM-110L  RM 1,064.00
EVBM-110R  RM 1,022.00

70m HDBaseT HDMI Extender
EVBM-M107 (107L/R) per pair  RM 1,274.00
EVBM-107L  RM 658.00
EVBM-107R  RM 616.00

MODEL
TRANSMITTER (L)
RECEIVER (R)
INPUT PORT
1x HDMI
1x RJ45
OUTPUT PORT
1x RJ45
1x HDMI
IR EXTENSION
1x IR Transceiver/ 1 x IR Receiver  (EVBMR model only)
VIDEO RESOLUTION (max)
4K2K UHD 3840 x 2160 @ 30Hz
DISTANCE SUPPORT
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
 POWER SUPPLY
DC 12V / Phantom Power-
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.
HDBaseT 100m HDMI Extender
  • EVBM-M110 (TX/RX)

HDBaseT 70m HDMI Extender
  • EVBM-M107 (TX/RX)

Rextron 3D HDMI Extender transmits full uncompressed 3D HD video and audio over CAT5e/ 6 cable of up to 100m/ 70m. Support Full HD 1080p and 4K2K UHD 3840 x 2160 with Deep Color, HD Audio format and Audio return channel as well. Phantom power function support single power supply at either one end of the two units (Tx & Rx).

  • HDBaseT technology
  • Remote EDID copy for optimum video performance
  • HDTV, 3D HDTV compatible, HDCP compliant
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Compatible with common screen resolutions UHD, Full HD, WUXGA, XGA, SXGA, UXGA, and WSXGA
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application

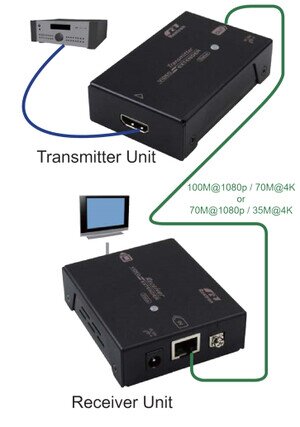

EVBM-M110/ M107


 HDMI HDBaseT Extender with IR
HDBaseT Extender 100m with IR

EVBMR-M110

100m HDBaseT HDMI Extender with IR
EVBMR-M110 (
110L/R) per pair  RM 2,478.00
EVBMR-110L - RM 1,260.00
EVBMR-110R - RM 1,218.00

70m HDBaseT HDMI Extender with IR
EVBMR-M107 (107L/R) per pair  RM 1,526.00
EVBMR-70L - RM 784.00
EVBMR-70R - RM 742.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
 INPUT PORT
1x HDMI
1x RJ45
 OUTPUT PORT
1x RJ45
1x HDMI
IR EXTENSION
1x IR Transceiver/ 1 x IR Receiver  Bi-Directional
 VIDEO RESOLUTION (max)
4K2K UHD 3840 x 2160 @30Hz
 DISTANCE SUPPORT
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
 POWER SUPPLY
DC 12V / Phantom Power
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.
HDBaseT 100m HDMI Extender
  • EVBMR-M110 (TX/RX) with IR

HDBaseT 70m HDMI Extender
  • EVBMR-M107 (TX/RX) with IR

Rextron 3D HDMI Extender transmits full uncompressed 3D HD video and audio over CAT5e/ 6 cable of up to 100m/ 70m. Support Full HD 1080p and 4K2K UHD 3840 x 2160 with Deep Color, HD Audio format and Audio return channel as well. Phantom power function support single power supply at either one end of the two units (Tx & Rx).

  • HDBaseT technology
  • Remote EDID copy for optimum video performance
  • HDTV, 3D HDTV compatible, HDCP compliant
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Compatible with common screen resolutions UHD, Full HD, WUXGA, XGA, SXGA, UXGA, and WSXGA
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application

EVBMR-110R
EVBMR-M110/ M107


 HDMI HDBaseT Extender with IR & Serial
HDBaseT Extender with Serial
One-To-One Direct Connection





100m HDBaseT HDMI Extender with Serial
EVBMS-M110 (110L/R) per pair  RM 2,618.00
EVBMS-110L  RM 1,330.00
EVBMS-110R  RM 1,288.00

70m HDBaseT HDMI Extender with Serial
EVBMS-M107 (107L/R) per pair  RM 1,526.00
EVBMS-107L  RM 784.00
EVBMS-107R  RM 742.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
 INPUT PORT
1x HDMI
1x RJ45
 OUTPUT PORT
1x RJ45
1x HDMI
 SERIAL PORT
DTE, DB9-F x 1
Max. 115,200 bps
DTE, DB9-F x 1
Max. 115,200 bps
IR EXTENSION
1x IR Transceiver/ 1x IR Receiver  Bi-directional
 VIDEO RESOLUTION (max)
4K2K UHD 3840 x 2160 @ 30Hz
 DISTANCE SUPPORT
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
 POWER SUPPLY
DC 12V / Phantom Power-
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.
HDBaseT 100m HDMI Extender with Serial
  • EVBMS-M110 (TX/RX)

HDBaseT 70m HDMI Extender with Serial
  • EVBMS-M107 (TX/RX)

Rextron 3D HDMI Extender transmits full uncompressed 3D HD video and audio over CAT5e/ 6 cable of up to 100m/ 70m. Support Full HD 1080p and 4K2K UHD 3840 x 2160 with Deep Color, HD Audio format and Audio return channel as well. Phantom power function support single power supply at either one end of the two units (Tx & Rx).

  • HDBaseT technology
  • Remote EDID copy for optimum video performance
  • HDTV, 3D HDTV compatible, HDCP compliant
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Compatible with common screen resolutions UHD, Full HD, WUXGA, XGA, SXGA, UXGA, and WSXGA
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application


EVBMS-M110/ M107


 HDMI HDBaseT Extender with Ethernet/ IR/ Output Network Port

HDMI HDBaseT EXTENDER with ETHERNET/ IR/ Network Port/ Serial
(Ethernet Broadband Support)


EVBMN-110L/R (TX)

100m HDMI HDBaseT Extender
with ETHERNET/ IR/ Network Port/ Serial
EVBMN-M110  per pair RM 2,618.00

EMBMN-110L  RM 1,330.00
EMBMN-110R  RM 1,288.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
EVBMN-M110
EVBMN-110L
EVBMN-110R
INPUT PORT
1x HDMI
1x RJ45 HDBT
OUTPUT PORT
1x RJ45 HDBT
1x HDMI
LED (Link/ Video Status)
Status LED: 1x Dual Color | LAN LED: 3 x Single-Color
VIDEO RESOLUTION (max)
4K2K UHD 3840 x 2160 @ 30Hz
DISTANCE SUPPORT
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
ETHERNET PORT
Bi-Directional  3x RJ45 LAN (10/100 Mbps)
SERIAL PORT
DCE, DB9-F
DCE, DB9-M
Bi-Directional 115kbps (max)
IR EXTENSION
1x IR Transceiver
1x IR Receiver
POWER SUPPLY
DC 12V / Phantom Power-
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI
or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

HDMI Extender with Ethernet All-In-One Multimedia

Transmitter & Receiver
EVBMN-M110

Simultaneously ditribute HDMI and Ehternet streaming video from source to diaply over a single twisted pair cable. Moreover, it send bidirectional RS-232 for serial extending, and IR signals for longer distance transmission. The advanced and inexpensive all-in-one connectivity technology by using low-cost and handy CAT5e/ 6 cables.

  • Send HDMI signal to multimedia display over CAT5e/ 6 cable distance up to 100m
  • Transmit full uncompressed HD video and audio over cable
  • 100BaseT Ethernet Pass-Thru, simultaneously distribute HDMI and Ethernet streaming video from the source to display
  • Low cost standard CAT5e/ 6 LAN cable, advanced and inexpensive all-in-one connectivity technology
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application


 EVBMN-M110

 HDMI HDBaseT Extender with IR/ USB

HDMI HDBaseT EXTENDER with IR/ USB





100m HDMI HDBaseT Extender with IR/ USB
EVBMU-M110  per pair RM 2,842.00
EMBMU-110L  RM 1,442.00
EMBMU-110R  RM 1,400.00


70m HDMI HDBaseT Extender with IR/ USB
EVBMU-M107  per pair RM 1,974.00
EMBMU-107L  RM 1,008.00
EMBMU-107R  RM 966.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
INPUT PORT
1x HDMI
1x RJ45 HDBT
OUTPUT PORT
1x RJ45 HDBT
1x HDMI
 USB EXTENSION
1x Mini USB (Source Host)
2x Type A USB HID (Device)
VIDEO RESOLUTION (max)
4K2K UHD 3840 x 2160 @30Hz
DISTANCE SUPPORT
EVBMU-M110
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)

EVBMU-M107
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
IR EXTENSION
Bi-Directional    1x IR Transceiver/ 1x IR Receiver
POWER SUPPLY
DC 12V / Phantom Power
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI
or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

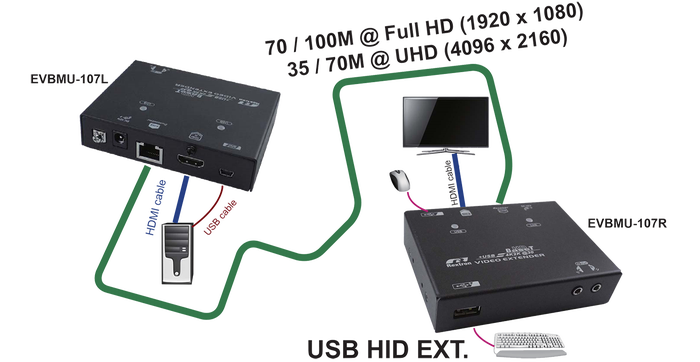

HDMI Extender with IR & USB

Transmitter & Receiver
EVBMU-M110L/R
EVBMU-M107L/R

HDMI KVM Extender 4K over CAT6 with IR & USB. Uncompressed HDMI  4K@30Hz video transmission up to 70m depending on model.  HDCP Compliant and backward compatible previous version without interruption.

Bi-directional IR pigtail extension cable for easy installation and control between Emitter/ Receiver. Standard USB HID extension transmission function witout software driver.

  • Send HDMI signal to multimedia display over CAT6/7 cable distance up to 100m/ 70m
  • Transmit full uncompressed HD video and audio over cable
  • Bi-Directional IR Extension
  • USB HID Extension for controlling PC/ Smart sources
  • USB compatible for USB Control Devices (USB keyboard, mouse, touch screen)
  • Low cost standard CAT 6/7 LAN cable, advanced and inexpensive all-in-one connectivity technology
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application

EVBMU-M107
 EVBMU-M110-M107

 HDMI HDBaseT Extender True 4K Extender
HDMI HDBaseT True 4K EXTENDER




100m HDMI HDBaseT True 4K Extender
EVBM-M6119  per pair RM 2,870.00
EMBM-6119L  RM 1,470.00
EMBM-6119R  RM 1,400.00

70m HDMI HDBaseT True 4K Extender
EVBM-M6117  per pair RM 1,946.00
EMBM-6117L  RM 1,008.00
EMBM-6117R  RM 938.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
INPUT PORT
1x HDMI
1x RJ45 HDBT
OUTPUT PORT
1x RJ45 HDBT
1x HDMI
VIDEO RESOLUTION (max)
True 4K UHD 3840 x 2160 @60Hz
DISTANCE SUPPORT
EVBMU-M6119
100m (Full HD 1920 x 1080)
70m (True 4K UHD 3840 x 2160)

EVBMU-M6117
70m (Full HD 1920 x 1080)
35m (True 4K UHD 3840 x 2160)
POWER SUPPLY
DC 12V / Phantom Power
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI
or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

HDBaseT HDMI Extender True 4K

Transmitter & Receiver
EVBM-M6119
EVBM-M6117

HDMI HDBaseT Extender True 4K HDMI 2.0 over CAT6. Uncompressed HDMI  4K@60Hz video transmission up to 70m depending on model.  HDCP Compliant with built in auto EDID Configuration function for optimized output.

  • Extend HDMI 4K/ 6G  to multimedia display over CAT6/7 cable distance up to 100m/ 70m
  • Unique Visual Lossless Compression Technology Make 4K 6G HD Video and Audio Extension Possible for HDBaseT to Bring You Vivid Experience
  • Auto EDID Configuration
  • HDTV, HDCP compliant 2.2 ready
  • Low cost standard CAT 6/7 LAN cable, advanced and inexpensive all-in-one connectivity technology
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application


 EVBM-M6119/ M6117

 HDMI HDBaseT Extender True 4K Extender with IR & USB
HDMI HDBaseT True 4K EXTENDER with IR & USB





100m HDMI HDBaseT True 4K Extender
with IR & USB
EVBMU-M6119  per pair RM 3,290.00
EMBMU-6119L  RM 1,680.00
EMBMU-6119R  RM 1,610.00

70m HDMI HDBaseT True 4K Extender
with IR & USB
EVBMU-M6117  per pair RM 2,394.00
EMBMU-6117L  RM 1,232.00
EMBMU-6117R  RM 1,162.00
MODEL
TRANSMITTER (L)
RECEIVER (R)
INPUT PORT
1x HDMI
1x RJ45 HDBT
OUTPUT PORT
1x RJ45 HDBT
1x HDMI
 USB EXTENSION
1x USB Transmitter (Host Source)
2x USB HID Receiver (Device)
 IR EXTENSION
Bi-Directional IR Transcerver & IR Receiver
VIDEO RESOLUTION (max)
True 4K UHD 3840 x 2160 @60Hz
DISTANCE SUPPORT
EVBMU-M6119
100m (Full HD 1920 x 1080)
70m (True 4K UHD 3840 x 2160)

EVBMU-M6117
70m (Full HD 1920 x 1080)
35m (True 4K UHD 3840 x 2160)
 LED STATUS
USB Multi-color / Link status multi-color
POWER SUPPLY
DC 12V / Phantom Power
single power supply usage on either TX or RX
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

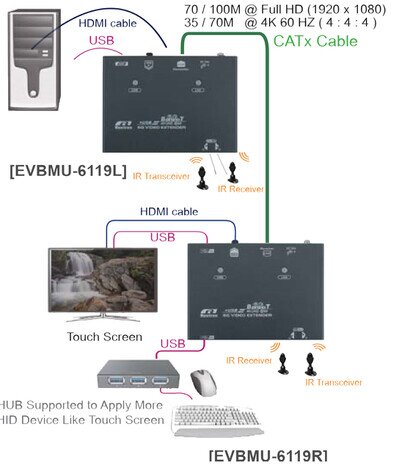

HDBaseT HDMI Extender True 4K with IR & USB

Transmitter & Receiver
EVBMU-M6119
EVBMU-M6117

HDMI HDBaseT Extender True 4K HDMI 2.0 over CAT6. Uncompressed HDMI  4K@60Hz video transmission up to 70m depending on model.  HDCP Compliant with built in auto EDID Configuration function for optimized output.

  • Extend HDMI 4K/ 6G  to multimedia display over CAT6/7 cable distance up to 100m/ 70m
  • Unique Visual Lossless Compression Technology Make 4K 6G HD Video and Audio Extension Possible for HDBaseT to Bring You Vivid Experience
  • Auto EDID Configuration
  • Bi-directional IR Extension
  • USB Extension to HID Device keyboard, mouse & touch screen
  • HDTV, HDCP compliant 2.2 ready
  • Low cost standard CAT 6/7 LAN cable, advanced and inexpensive all-in-one connectivity technology
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application


 EVBMU-M6119/ M6117

 HDMI HDBaseT Receiver with Scaling

HDMI HDBaseT Receiver with Scaling



100m HDMI HDBaseT Receiver with Scaling
EVBM-K110R  RM 2,240.00

70m HDMI HDBaseT Receiver with Scaling
EVBM-K107R  RM 1,806.00
MODEL
RECEIVER (R)
INPUT PORT
1x RJ45 HDBT
OUTPUT PORT
1x HDMI + Analog Stereo
 PUSH BUTTON SELECT
4x port push button select, 1x Menu button
 IR EXTENSION
IR Transcerver & IR Receiver
SERIAL CONTROL
RJ12
DISTANCE SCALE SUPPORT
EVBM-K110R
Full HD 1920 x 1080 (100m)
WUXGA 1920 x 1200 (100m)

EVBM-K107R
Full HD 1920 x 1080 (70m)
WUXGA 1920 x 1200 (70m)
POWER SUPPLY
DC 12V
Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI
or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

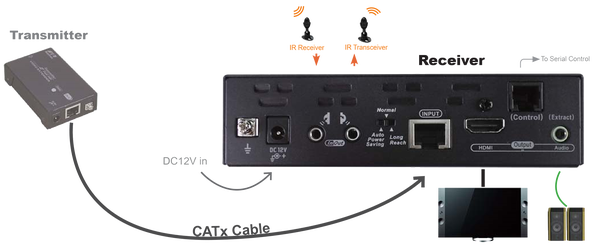

HDBaseT HDMI Receiver with Scaling

Receiver
EVBM-K110R
EVBM-K107R

HDMI HDBaseT Extender Receiver scaler with IR and serial over CAT6

  • Extend HDMI multimedia display over CAT6/7 cable distance up to 100m/ 70m
  • Scales input signal up to WUXGA 1920 x 1200 and Full HD 1920 x 1080
  • Auto EQ sharpness for optimal signal clarity
  • HDCP compliant
  • Low cost standard CAT 6/7 LAN cable, advanced and inexpensive all-in-one connectivity technology
  • Support Phamtom Power- single power asupply usage either end of two units
  • HDMI up to 10.2Gps, including support for Full HD 1080p 60Hz, Deep Color, HD-3D, 4K2K UHD, HD Audio Format and Audio Return Channel
  • Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application


 EVBM-K110R/ K107R

Copyright @3wired System Sdn Bhd, 2024. All rights reserve
Back to content
