MAXHUB DVLED RAPTOR SERIES V3 EXPLORE A RANGE OF SUPERIOR VISUAL QUALITY OPTIONS FOR YOUR ROOM The options available range from 120" to 220", offering versatility to accommodate various room sizes and viewing preferences.

	Physical Specification
Model	LX120V07	LX138V07	LX150V07	LX165V07	LX180V07	LX220V07	LX220V18	LX135V07C
Diagonal Size (inch)	120"	138"	150"	165"	180"	220"	220"	135"
LED Type \| Aspect Ratio	SMD \| 16:9							COB \| 16:9
Pixel Pitch (mm/in)	1.3 / 0.051	1.5/ 0.059	1.7/ 0.067	1.9/ 0.074	2/ 0.079	2.5/ 0.047	1.2/ 0.047	1.5/ 0.059
Resolution	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080	1920 x 1080	3840 x 2160	1920 x 1080
Physical Size (W*H) (mm/in)	2694 × 1624/ 106.1 × 63.9	3080 × 1840/ 121.3 × 72.4	3360 × 1998/ 132.3 × 78.7	3690 × 2183/ 145.3 × 85.9	4026 × 2373/ 158.5 × 93.4	4910 × 2869/ 193.3 × 112.9	4910 × 2869/ 193.3 × 112.9	3030.8 × 1812.9
*Display Area (WH) (mm/in)**	2664 × 1499/ 104.9 × 59	3050 × 1715/ 120.1 × 67.5	3330 × 1873/ 131.1 × 73.7	3660 × 2058/ 144.1 × 81	3996 × 2248/ 157.3 × 88.5	4880 × 2744/ 192.1 × 108	4880 × 2744/ 192.1 × 108	3000 × 1687.5
Screen Thickness (mm/in)	28/ 11"							31
Net Weight (w/o stand & mount)	87kg	122kg	131kg	172kg	185kg	296kg	296kg	110kg
Gross Weight (with mount)	165kg	287kg	311kg	350kg	375kg	515kg	515kg
Recommended View Dist (m/ft)	> 2.8/ 9.19	> 3.2/ 10.5	> 3.4/ 11.15	> 3.8/ 12.47	> 4/ 13.12	> 5/ 16.4	> 5/ 16.4	> 3.2/ 10.5
Installation Options	Mobile Stand, Wall-mounting				Wall-mounting			Mobile Stand, Wall-mounting
Maintenance Mode	Front Access
Screen and Module Dimension *(Wooden Box) (WHD) (mm/in)*	1 pc: 1680 × 810 × 915/ 66.1 × 31.9 × 36	1 pc: 1900 × 760 × 1215/ 74.8 × 29.9 × 47.8	1 pc: 2170 × 680 × 1255/ 85.4 × 26.8 × 49.4	1 pc: 1500 × 1250 × 1230/ 59.1 × 49.2 × 48.4	1 pc: 1310 × 1330 × 930/ 51.6 × 52.4 × 36.6 1 pc: 1170 × 770 × 875/ 46.1 × 30.3 × 34.4	1 pc: 1560 × 1280 × 890/ 61.4 × 50.4 × 35 1 pc: 1560 × 1240 × 1070/ 61.4 × 48.8 × 42.1	1 pc: 1560 × 1280 × 890/ 61.4 × 50.4 × 35 1 pc: 1560 × 1240 × 1070/ 61.4 × 48.8 × 42.1
	Optical Specification
Brightness \| Refresh Rate	100~600 nits (Adjustable) \| 3840 Hz
Gray Scale \| Contrast	13~16 bit \| 6500:1							13~16 bit \| 15000:1
Color Temperature	2300~9300K (Adjustable)
Viewing angle \| LED Lifespan	160° (H) / 140° (V) \| >100,000 hrs							165° (H) / 165° (V) \| >100,000 hrs
	System Parameter
Operating System	Android 13.0
CPU	Four Cortex-A76+ Four Cortex-A55, Frequency 2.4GHz
RAM \| Storage	8GB \| 64GB
Media Format	Support mainstream video format such as MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC, AV1; Support audio formats such as MP3; Support JPG, JPEG, BMP, PNG, GIF and other image format.
Wireless	Bluetooth 5.3, WiFi 6, AP and STA modes, and WiFi 6 dual-band 2.4G/5G are available
	Audio
Speaker Unit	4 full range units + 2 low frequency units
Speaker Max Power	120W
Max. Sound Pressure Level	95 dB
	Connectivity
Input I/O	1x Type C, 2x USB 3.0, 1x USB 2.0, 3x HDMI 1.4, 3.5mm Audio, 1x HDMI 2.0 (CEC), 4x RJ45 (RS232 Protocol, POE+ 30W MAXHUB PTZ Camera, OPS LAN, Android LAN)
Output I/O	1x HDMI 2.0, 2x 3.5mm Audio, 1x USB Type B
	Accessories
Accessories Include	1x Remote Control, 1x Front Maintenance Tool, 1x Tool Kit, Wall Mounting Bar
Mobile Stand	ST90/ ST92 (Optional)
Radar Touch Module \| PC Module	LID01A (Optional) \| LMT71A (Optional)
	Environmental Parameter
Operation Temperature	10℃~40℃
Operation Humidity	10%~80%RH No condensation
	Electrical Parameter
Operation Volt \| Standby Power	100~240VAC, 50/60Hz \| <0.5W
Average \| Max Power Consumption	0.483 KW \| 1.611 KW	0.447 KW \| 1.491 KW	0.575 KW \| 1.916 KW	0.731 KW \| 2.438 KW	0.78 KW \| 2.6 KW	1.101 KW \| 3.67 KW	1.514 KW \| 1.514 KW	0.418 KW \| 1.252 KW

MAXHUB Raptor Series V3

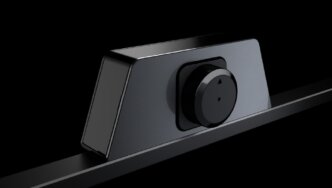

Radar Touch

LID01

MAXHUB Raptor Series V3

Optional PC Module

LMT71
