MAXELL (HITACHI) INSTALLATION 6000-8000 ANSI LUMENS

PROJECTOR > MAXELL (HITACHI)

Call Online Special price 03-8069 1655/ 03-8069 1755/ 012-278 5731 sales@3wiredsys.com

Free Delivery within Klang Valley

Hitachi Wireless Dongle

USB WL-11N/ WL-5G RM 320

ACCESSORIES
Wireless Presenter
Logitech

Logitech R400 RM 120

WARRANTY

2 years warranty on parts against manufacturing defects
1,000 hours on lamp or 1 year whichever come first

Software Download

Prices are subject to changes without prior notice

MAXELL (HITACHI) INSTALLATION WIDE SERIES
INSTALLATION FOR CONFERENCE ROOM Network LCD
MODEL XGA	MC-X8170 RM 14,950.00		MC-X8801W RM 17,950.00
ANSI LUMENS	7,000		8,000
LENS	Optional LENS (Lens not included)
IMAGE SIZE	Varies depend on Lens
ASPECT RATIO	4:3
CONTRAST RATIO	3,000:1		10,000:1
RESOLUTION	XGA 1024 x 768
CONNECTION INPUT	Display In: HDMI x 2, RGB, RCA Video, S-Video, RJ-45 Network, Component Video, USB Type B (Mouse & USB Display), Audio In: RCA L/R, Stereo Mini Jack x 2



	BNC x 5, USB Type A x 2 (PC-less wireless optional or optional wireless adapter)		Network, Display Port, USB Type A (optional wireless adapter)
CONNECTION OUTPUT	Display Out: RGB \| Audio Out: RCA L/R		Audio Out: Stereo Mini Jack
	Built in speaker: 8W Mono x 2
CONTROL	RS-232C D-Sub 9 pin Wired remote control (In/Out) 3.5mm mono connector
WEIGHT	8.8kg		11.1kg
DATASHEET	MC-X8170		MC-X8801W
INSTALLATION MODEL

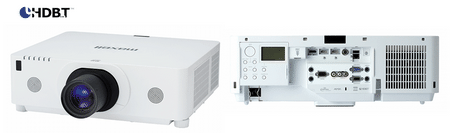

MODEL WXGA	MC-WX8651W RM 17,950.00	MC-WX8751W RM 20,550.00	MC-WU8601W RM 20,950.00	MC-WU8701W RM 24,950.00
ANSI LUMENS	6,500	7,500	6,000	7,000
LENS	Optional LENS (Lens not included)
ASPECT RATIO	16:10
CONTRAST RATIO	10,000:1
RESOLUTION	WXGA 1280 x 800		WUXGA 1920 x 1200
CONNECTION INPUT	Display In: HDMI x2, RGB, RCA Video, Display Port, USB Type A (Wireless option), USB Type B(mouse/ Display), HDBaseT RJ-45 Network, RJ45 Network Audio In: RCA L/R, Stereo Mini Jack x2
				SDI IN-BNC x 5
CONNECTION OUTPUT	Display Out: RGB \| Audio: Stereo Mini Jack \| Built in speaker: 8W Mono x 2
CONTROL	RS-232C D-Sub 9 pin Remote control (In/Out) 3.5mm mono connector
WEIGHT	11.1kg
FEATURES	Edge Blending & Warping
DATASHEET	MC-WX-WU

MAXELL (HITACHI) OPTIONAL LENS FOR MC-WX8751/ WU8701/ X8801
MODEL	DESCRIPTION	PRICE
ML-703	Middle Throw Zoom Lens	4,500.00
SL-702	Short Throw Zoom Lens	4,950.00
LL-704	Long Throw Zoom Lens	6,850.00
UL-705	Ultra Long Throw Zoom Lens	6,950.00
SL-712	Short Throw Lens (for model CP-X8800/ WX8651/ WX8750/ WU8601/ WU8701)	3,950.00
FL-710	Ultra Short Throw Lens	22,950.00
FL-701	Fix Lens	6,950.00
