DIGITAL SIGNAGE 7 SCREENS

DIGITAL SIGNAGE & SMART HOME > DIGITAL SIGNAGE

DIGITAL SIGNAGES 7 SCREENS OUTPUT

Multi Screen Digital Signage

MA1367 7-Display Screen

Content Manager

1 Year Standard Warranty

Call or Email for Quote

03-8069 1655/ 03-8069 1755

012-278 5731

sales@3wiredsys.com

for

Consultation,

Technical enquiries,
Recommendation or Demo

MA1356 SPECIFICATION MODEL

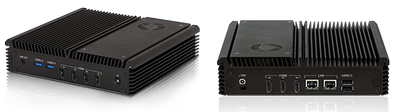

DT Research MA1367 Digital Signage

Intel Digital Signage

Intel Core™ i7 CPU

No subscription fees

Web Base Easy Designer

The DT Research MA1367 Multi Screen Appliance features the powerful and energy-efficient Intel Core™ i7 processor and integrates 7 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1367 is capable of driving content on up to 7 screens while communicating with the server for updates for digital menu board and advertising applications.

Intel Core™ i7 CPU
Drives up to 7 screens
Microsoft Windows Embedded 7
Content and device management, menu board editor software included
Content flexibility for many multimedia file formats; stretched across multiple screens or played on a single screen
Support Potrait & Landscape in a single object span over 7 screens or individual object.
Real-time or scheduled content playback
Automatic content download recovery

Application Usage

Hotels, Retail, Cinema, Church, University, College

MODEL	MA1367
CPU	Intel® Core™ i7
RAM	4GB - 8GB
STORAGE	64GB - 256GB Flash
OPERATION SYSTEM	Microsoft® Windows® Embedded 7 Standard
DISPLAY RESOLUTION	4K UHD 3840 x 2160 @ 24Hz (x2); 1920 x 1080 @ 60Hz (x7)
NETWORK	RJ45 x 2 - 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
OUTPUT PORT	HDMI x 7 (1.4)/ USB 2.0 x 2/ USB 3.0 x 2/ Audio Jack x 1
ENCLOSURE	Aluminium chasis/ Fanless/ VESA mounting bracket included
POWER SUPPLY	Input: 100 – 240V AC; Output: 19V DC
WEIGHT	5.51 lbs/ 2500 g
TEMPERATURE / HUMIDITY	Operation: 0°C – 40°C; Storage: -20°C – 60°C/ 0% – 90% non-condensing
DIMENSION	2 x 8.3 x 7.87 in/ 50 x 210 x 200 mm

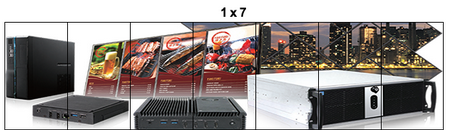

MA1367 - 7 Output Screens Display Various combination from 1 screen up to 7 screens on potrait/ landscape stretched content across multiple screens or play different individual content on a single screen
MODEL	OS	STORAGE	RAM
MA1367E-37B	Windows Embedded 7	64GB Flash	4GB
MA1367E-38B		128GB Flash
MA1367E-39B		256GB Flash
MA1367E-47B		64GB Flash	8GB
MA1367E-48B		128GB Flash
MA1367E-49B		256GB Flash
