DIGITAL SIGNAGES 6 SCREENS OUTPUT

Multi Screen Digital Signage

MA1356 6-Screens Display

Content Manager

1 Year Standard Warranty

Call or Email for Quote

03-8069 1655/ 03-8069 1755

012-278 5731

sales@3wiredsys.com

for

Consultation,

Technical enquiries,
Recommendation or Demo

MA1356 SPECIFICATION MODEL

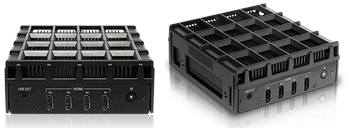

DT Research MA1356 Digital Signage

Intel Digital Signage

Intel® Celeron® quad-core CPU

No subscription fees

Web Base Easy Designer

The DT Research MA1356 Multi Screen Appliance features the powerful and energy-efficient Intel Celeron quad-core processor and integrates 6 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager and Menu Board Editor software, one MA1356 is capable of driving content on up to 6 screens while communicating with the server for updates for digital menu board and advertising applications.

Intel® Celeron® quad-core CPU
Small, robust and fanless design
Drives up to 6 screens
Microsoft Windows Embedded 7
Support for multiple zones of content
Content flexibility for many multimedia file formats; stretched across multiple screens or played on a single screen
Support Potrait & Landscape in a single object span over 6 screens or individual object.
Real-time or scheduled content playback
Automatic content download recovery

Application Usage

Hotels, Retail, Cinema, Church, University, College

MODEL	MA1356
CPU	Intel® Celeron® Quad Core
RAM	4GB - 8GB
STORAGE	64GB - 256GB Flash
OPERATION SYSTEM	Microsoft® Windows® Embedded 7 Standard
DISPLAY RESOLUTION	Full HD 1920 x 1080 @ 60Hz (x6)
NETWORK	RJ45 x 1 - 10/ 100/ 1000MB BaseT LAN; Wi-Fi 802.11a/b/g/n (optional)
OUTPUT PORT	HDMI x 6 (1.4)/ USB 2.0 x 2/ USB 3.0 x 2/ Audio Jack x 1
ENCLOSURE	Aluminium chasis/ Fanless/ VESA mounting bracket included
POWER SUPPLY	Input: 100 – 240V AC; Output: 19V DC
WEIGHT	2.9 lbs/ 1316 g
TEMPERATURE / HUMIDITY	Operation: 0°C – 40°C; Storage: -20°C – 60°C/ 0% – 90% non-condensing
DIMENSION	2.16 x 5.82 x 6.5 in/ 55 x 148 x 165.1 mm

MA1356 - 6 Output Screens Display Various combination from 1 screen up to 6 screens on potrait/ landscape stretched content across multiple screens or play different individual content on a single screen
MODEL	OS	STORAGE	RAM
MA1356E-37B	Windows Embedded 7	64GB Flash	4GB
MA1356E-38B		128GB Flash
MA1356E-39B		256GB Flash
MA1356E-47B		64GB Flash	8GB
MA1356E-48B		128GB Flash
MA1356E-49B		256GB Flash
