3D HDMI EXTENDER Over FIBER with IR

FV3D

1 Year Standard Warranty

Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,

Technical enquiries,
Recommendation or Demo

Type of Fiber Mode

PRODUCT FEATURES DIAGRAM

HDMI Extender Over Fiber Multi-Mode FV3D-M30 with IR RM 6,604.00 Support 1600m Distance	MODEL		TRANSMITTER (TX)	RECEIVER (RX)
	FV3D-M30		FV3D-30L	FV3D-30R
	INPUT PORT		1 x HDMI
	OUTPUT PORT		1 x HDMI	2 x HDMI
	VIDEO MODE	MANDATORY 3D	1920x1080p @24Hz 1280x720p @ 60Hz 1280x720p @ 50Hz
		2D	HDMI 1.3b Compliant
	FREQUENCY RANGE		25~225
	VIDEO RESOLUTION (max)		Full HD 1920 x 1080, WUXGA 1920 x 1200
	EXTENSION DISTANCE		800m Distance 1080P, 1600m Distance 1080I
	POWER SUPPLY		3W each
	CONNECTION		Fiber Optics
	H x W x D (mm)		24 x 75 x 150
	WEIGHT (g)		430 ~ 435

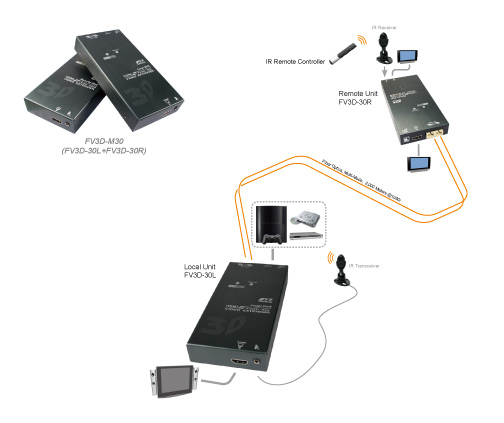

HDMI Extender Over Fiber

FV3D-M30 (FV3D-30L + FV3D-30R) with Serial

High speed fiber transmission real-time high resoltuion, security, and noise immunity. Push button EDID learn audio+ video for best video presentation.

EDID learning function
Pure digital transmission with zero compression
Extend HDMI & 7.1 ch Audio signal up to 1,600 meters @ 1080i / 800 meters @ 1080p via fiber optics multi-mode technology
Support 2 video ports for remote display and 1 for local display
IR extension function available
Video resolution auto adjustment
Mandatory 3D-video, HDCP compliant and Blu-ray ready
Completely free of Electromagnetic Interference (EMI)

HDMI EXTENDER Over FIBER with Audio

FVMAS-2011

1 Year Standard Warranty

Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,

Technical enquiries,
Recommendation or Demo

[link:19][/link:19]http://wsx5customurl.com

Type of Fiber Mode

PRODUCT FEATURES DIAGRAM

HDMI Extender Over Fiber with Audio Multi-Mode FVMAS-2011 RM 7,774.00 Support 2000m Distance	MODEL	TRANSMITTER (TX)	RECEIVER (RX)
	FVMAS-2011	FVMAS-11L	FVMAS-01R
	INPUT PORT	1 x HDMI/ Speaker + MIC
	OUTPUT PORT	1 x HDMI/ Speaker + MIC	1 x HDMI
	SERIAL INTERFACE	DCE	DTE
	VIDEO RESOLUTION (max)	Full HD (1920 x 1080) WUXGA (1920 x 1200)
	EXTENSION DISTANCE	1000M(1080p), 2000M(1080i)
	POWER SUPPLY	12 W (Per Unit)
	CONNECTION	Fiber Optics
	H x W x D (mm)	44 x 218 x 130
	FRONT PANEL LEDs	Power Status/ Video Source/ Display Device/ Serial

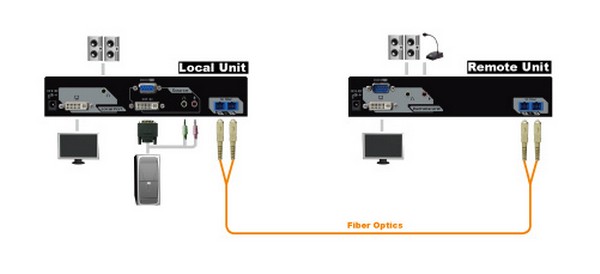

HDMI Extender Over Fiber with Audio

FVMAS-2011 (TX & RX)

● Connect the Video Extender pair via fiber optics cable

● Extend video+Audio signals up to 2000 meters away from a Local Unit with the maximum resolution of

Full HD (1920 x 1080)

● High speed and long distance transmission by optical system

● Support serial interface for instant data transfer

● Fully compatible with HDMI standard by DDWG

● Ideal for professional audio/ video applications

● Fiber system only without DDC function (pseudo DDC signal can be transmitted for EDID information.)

● Compatible with all HDMI v1.3 displays and projectors

● Uses multi mode Optical fiber

● Video is transmitted digitally for zero signal loss

● No software or drivers required and easy to install

● Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA ….Full HD, WUXGA system

HDMI EXTENDER Over FIBER with IR (Single-Mode/ Multi-Mode)

FVM-M040/ FVM-M030

1 Year Standard Warranty

Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,

Technical enquiries,
Recommendation or Demo

Type of Fiber Mode

PRODUCT FEATURES DIAGRAM

HDMI Extender Over Fiber with IR FVM-M040 (FVM-040L/R) RM 3,387.00 Multi-Mode Fiber FVM-M030 (FVM-030L/R) RM 3,802.00 Single Mode/Multi-Mode Fiber	MODEL	TRANSMITTER (TX)	RECEIVER (RX)
	FVM-M030	FVM-030L	FVM-030R
	FVM-M040	FVM-040L	FVM-040R
	INPUT PORT	1 x HDMI
	OUTPUT PORT		1 x HDMI
	VIDEO RESOLUTION (max)	Full HD (1920 x 1080) WUXGA (1920 x 1200)
	EXTENSION DISTANCE	1000m (1080i), 800m (1080p)
	IR CONTROL JACK	IR Transceiver	IR Receiver
	CONNECTION	Fiber Optics
	POWER SUPPLY	DC 9~12V, 1.5A
	WEIGHT (g)	440~445
	H x W x D (mm)	25 x 96 x 130 (each Unit)

HDMI Extender Over Fiber

FVM-M030 (FVM-030L/R) with IR - Multi-Mode

FVM-M040 (FVM-040L/R) with IR - Single Mode/ Multi-Mode

Extend HDMI and 4 USB signal up to 60m @ 1080i with dual CAT6 cable. With Auto EQ sharpness adjustment for optimal signal clarity. Support 3D video and HDCP compliant and Blur-ray/ Astro ready.

Features:

Extend HDMI signal and 4 USB up to 60 meters @ 1080i (CAT6)
Auto EQ (Sharpness) adjustment for optimal signal clarity
Fully compatible with HDMI standard by DDWG
HDTV compatible; support 1080p, 1080i, 720p
Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA…Full HD system
3D-video, HDCP compliant and Blu-ray ready
Plug-and-Play allows you to add or remove devices at any time
Easy to install and simple to set up
No software needed or driver required
Suitable for most of popular USB devices (USB web cams, USB printers, USB Scanner, external hard disk drives ....)
Unique mecanism design of two ports on top for easily connecting USB peripherals.

HDMI EXTENDER Over FIBER with IR & Serial (Single-Mode/ Multi-Mode)

FVMS-M040/ FVMS-M030

1 Year Standard Warranty

Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,

Technical enquiries,
Recommendation or Demo

Type of Fiber Mode

PRODUCT FEATURES DIAGRAM

HDMI Extender Over Fiber with IR & Serial FVMS-M040 (FVMS-040L/R) RM 5,264.00 Multi-Mode Fiber FVMS-M030 (FVMS-030L/R) RM 5,654.00 Single Mode/Multi-Mode Fiber	MODEL		TRANSMITTER (TX)	RECEIVER (RX)
	FVMS-M030		FVMS-030L	FVMS-030R
	FVMS-M040		FVMS-040L	FVMS-040R
	INPUT PORT		1 x HDMI
	OUTPUT PORT			1 x HDMI
	VIDEO RESOLUTION (max)		Full HD (1920 x 1080) WUXGA (1920 x 1200)
	EXTENSION DISTANCE		1000m (1080i), 800m (1080p)
	IR CONTROL JACK		IR Transceiver	IR Receiver
	SERIAL	CONNECTION	DCE x 1 (DB-9F)	DTE x 1 (DB-9M)
		BAUD RATE		Rotary Switch x 1
		DATA FORMAT		DIP Switch x 1
		TRANSFER SPEED	Selectable (921.6Kbps max.)
	CONNECTION		Fiber Optics
	POWER SUPPLY		DC 9~12V, 1.5A
	WEIGHT (g)		440~445
	H x W x D (mm)		25 x 96 x 130 (each Unit)

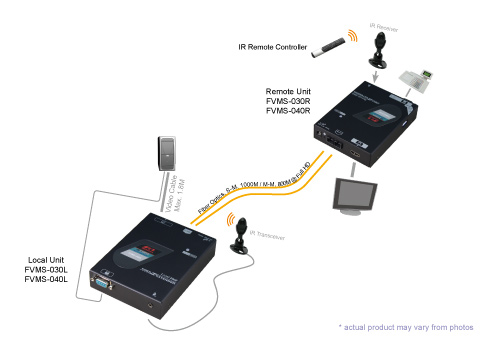

HDMI Extender Over Fiber with IR & Serial

FVMS-M030 (FVM-030L/R) with IR - Single Mode/ Multi-Mode

FVMS-M040 (FVM-040L/R) with IR - Multi-Mode

● Extend HDMI signal up to 1,000M@ 1080p (S-M) / 800M@ 1080p (M-M) far away via fiber optics technology
● HDTV compatible
● IR extension available (38K)
● Audio is embedded in HDMI output
● HDCP compliant and Blu-ray ready
● Completely free of Electromagnetic Interference (EMI)
● Low latency from input at local unit to output at remote unit, makes the product suitable for live presentations
● Compatible with most of the popular screen resolution to XGA, SXGA, UXGA, WSXGA…. Full HD system

Exclusive Serial Function
● Serial interface for instant data transfer or Touch Screen function
● Full-Duplex data communication
● Support H/W and S/W (Xon / Xoff)Handshake (selectable)
● Serial transfer speed up to 115.2Kbps / 921.6Kbps (max.)
