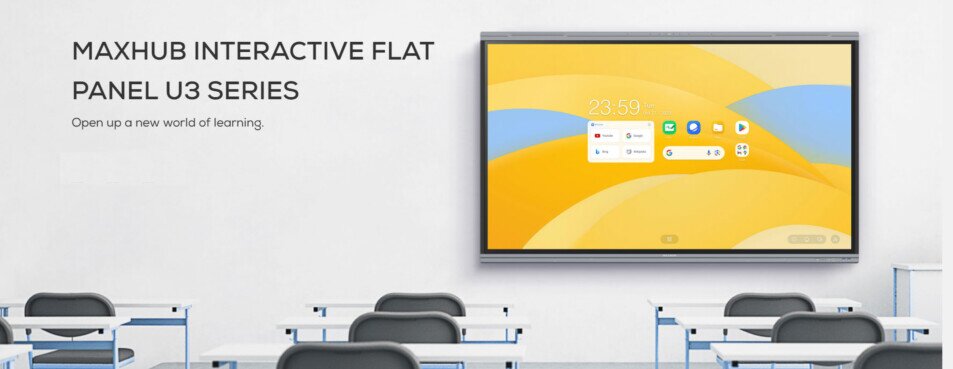

MAXHUB Education U3 Series The Google Ecosystem With the EDLA-sertified U3 Series, you can access Google's expansion suite of apps freely and securely. Its built-in collaboration tools and intuitive operating system ensures a smooth and hassle-free start. *EDLA stands for Google'e Enterprise Devices Licensing Agreement.	MaxHub Interactive Flat Panel U3 Series The ultimate board for education. Redefining the teaching and learning experience, this flagship offering empowers educators and learners alike to unloack the infinite possibilities of knowledge.
	U6530	U7530		U8630
	Education Interactive Series
Diagonal Size (inch)	65"	75"		86"
Backlight \| Panel Technology	Direct-lit LED \| VA
Aspect ratio \| Resolution	16:9 \| 3840 x 2160
Response Time \| Refresh Rate	6.5ms \| 60Hz
Contrast Ratio \| Brightness	5,000:1(Typ.) / 50,000:1(Dynamic), 450 nits	5,000:1(Typ.) / 50,000:1(Dynamic), 500 nits
Glass Treatment \| Thickness \| Hardness	Anti-glare, Tempred \| 3mm \| 9H Tempered
Color Gamut	72% NTSC
Viewing Angle \| Backlight Life	H178°/ V178° \| >50,000 Hours
Color Accuracy \| Color Depth	Delta E < 1.5 \| 1.07B (10bit)
Eyes Care	TÜV Low Blue Light, TÜV Flicker Free
Anti-bacterial	TÜV / SGS/ SIAA Certified
	Touch System
Max Touch Points Supported	50 Touch Points
Object Recognition Range \| Accuracy	1.5mm \| +0.5mm
Response Time \| Writing Height	<2.5ms \| <1m
Supported OS (Touch Return)	Windows 11, 10,8,7/ Android/ Linux/ Mac OS X/ Chrome OS
	Built-in System
CPU	Android 13.0 - ARM A76x4+A55x4 Octa-core, 8GB RAM, 64GB ROM, GPU Mali-G610 MP4, NPU 6 TOPS Certification: Google EDLA certification
	Connectivity
Input	4x HDMI 4K@60Hz/ HDCP 2.3, CEC, 1x USB 2.0, 4x USB 3.0, 2x USB Type-C 1x DP 4K@30Hz, 1x LAN Wired RJ45/ 1x WiFi 2.5GHz & 5GHz 1x Audio In, Bluetooth 5.2
Output	1x HDMI Out (4K@60fps), 1x USB Type-C (4K@60Hz), 2x Touch Out, 1x RJ45 1x Audio Out, 1x S/PDIF Out
Control	1x RS232
OPS Slot \| OPS Compatible	OPS Slot: 1x Module slot, WiFi Slot: 1x Module slot
	Audio
Built-in Speakers	Output: 2x 8W+ 2x 18W, Maximum: 2x 12W+ 2x 25W / Sound Channel: 2.2
Built-in Micrphone	8-Microphone array, Pick up range 0-10m
	Software
System OS \| Whiteboard Tool	MaxHub EDU OS V4.0 \| Maxhub Class
Screen Share \| Device Management	MaxHub Connect \| Maxhub Pivot
On Board Apps	Google Apps: Google Play, Google Drive, Google Meet, Google Map, YouTube, etc. Other Apps: Browser, Cloud Drive, Note, Palette, WPS Office, etc.
	Accessory
Cables	3m Power Cord, 3m HDMI, 3m USB Type A->B
Others	Remote Control, Wall Mount Bracket, 2x Stylus, Wireless Adapter SI07B
	Physical Specification
Dimension (W x H x D)	1488 x 908 x 86 mm	1709.4 x 1031 x 85.7 mm	1957 x 1171 x 86 mm
Gross Dimension (W x H x D)	1628 x 1005 x 208 mm	1863 x 1148 x 225 mm	2110 x 1291 x 225 mm
VESA	600 x 400mm, M8 x 25mm	800 x 400mm, M8 x 25mm	800 x 600mm, M8 x 25mm
Net Weight \| Gross Weight	38.67kg \| 48.25kg	51.46kg \| 60.75kg	63.55kg \| 80.15kg
	Optional Module
Optional Device	Camera: UC W31, OPS: OPS62A/OPS72A, Sensor Box: WL10C, Mobile Stand
	Datasheet
Brochure	MaxHub U3 Series
