MaxHub Commercial Display

Maxhub Monitor & Wireless Presenter
MAXHUB  DISTRIBUTOR
MAXHUB CMA SERIES COMMERCIAL DISPLAY

3 Years Standard Warranty



Contact or whatsapps for price
03-8069 1655/ 1755
012-278 5731
sales@3wiredsys.com

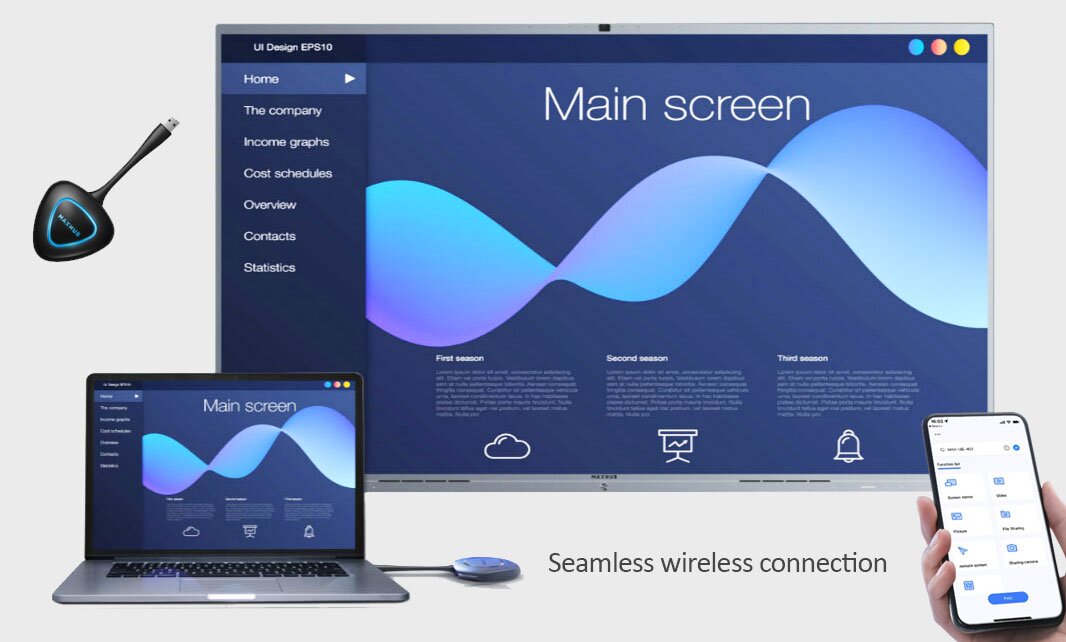

WT13M Wireless Presentation Option

MAXHUB CMA Series


The Google Ecosystem
Wireless screen sharing up to 4 devices simultaneously.

Choose from screen sizes 43", 55", 65", 75", 86" and 98" to meet your application needs
MaxHub Commercial Display CMA Series
The combination of 4K UHD resolution and high brightness ensures true-to-life detail.


ND43CMA
ND55CMA
ND65CMA
ND75CMA
ND86CMA
ND98CMA

Education Interactive Series
Diagonal Size (inch)
43"
55"
65"
75"
86"
98"
Backlight | Panel Technology
VA
ADS
Aspect ratio | Resolution
16:9 | 3840 x 2160 4K UHD
Response Time | Refresh Rate
6.5ms | 60Hz
Contrast Ratio | Brightness
5,000:1 (Typ)/ 1,000,000:1(Dynamic) | 500 nits
1,200:1 (Typ)/ 1,000,000:1(Dynamic) | 500 nits
Viewing Angle | Backlight Life
H178°/ V178°  |   >50,000 Hours
Thickness of Bezel
9.9mm
15.9mm
26mm
Orientation
Potrait/ Landscape mode
Operation Hours
18/7

Connectivity
Input
2x HDMI 2.0, USB Type-C (PD 65W), USB 3.0 (external peripherals), USB 2.0 (firmware), RJ45, Wi-Fi 2.4GHz & 5GHz
3x HDMI 2.0, USB Type-C (PD 65W), USB 3.0 (external peripherals), USB 2.0 (firmware), RJ45, Wi-Fi 2.4GHz & 5GHz
Output
HDMI 2.0, Audio Out, S/PDIF (optical)
HDMI 2.0, RJ45, Audio Out, S/PDIF (optical)
Control
1x RS232/ IR Receiver
OPS Slot | OPS Compatible
No
80pin/ OPS62A
Built-in Speakers
2x 10W

Build-in Player
Processor | Graphic
A55 x 4 | Mali-G52 x 2
Memory | Storage
4GB | 32GB
Operating System | UI Resolution
Android 11.0 | 4K

Accessory
Others
Remote Control, Wall Mount Bracket, HDMI Cable, Wireless Adapter SI07B, Power Cord

Physical Specification
Dimension (WxHxD mm)
964.6 x 552.5 x 71.4
1233 x 703.5 x 71.4
1463.3 x 838.3 x 76.4
1685.6 x 963.7 x 81.6
1930.8 x 1101.8 x 81.6
2212.9 x 1268.4 x 79.4
Package Dimension (WxHxD mm)
1056 x 672 x 156
1332 x 819 x 156
1628 x 942 x 208
1863 x 1090 x 225
2110 x 1227 x 225
2360 x 1425 x 280
VESA
200 x 200mm
400 x 200mm
600 x 400mm
800 x 600mm
Net Weight | Gross Weight
9.90kg | 21.83kg
13.40kg | 19.5kg
25.40kg | 33.25kg
34.65kg | 48.15kg
43.15kg | 60.75kg
69.90kg | 90.8kg

Optional Module
Optional Device
WT13 Wireless Dongle
WT13 Wireless Dongle, OPS: OPS62A

Datasheet
Brochure
MaxHub CMA Series
