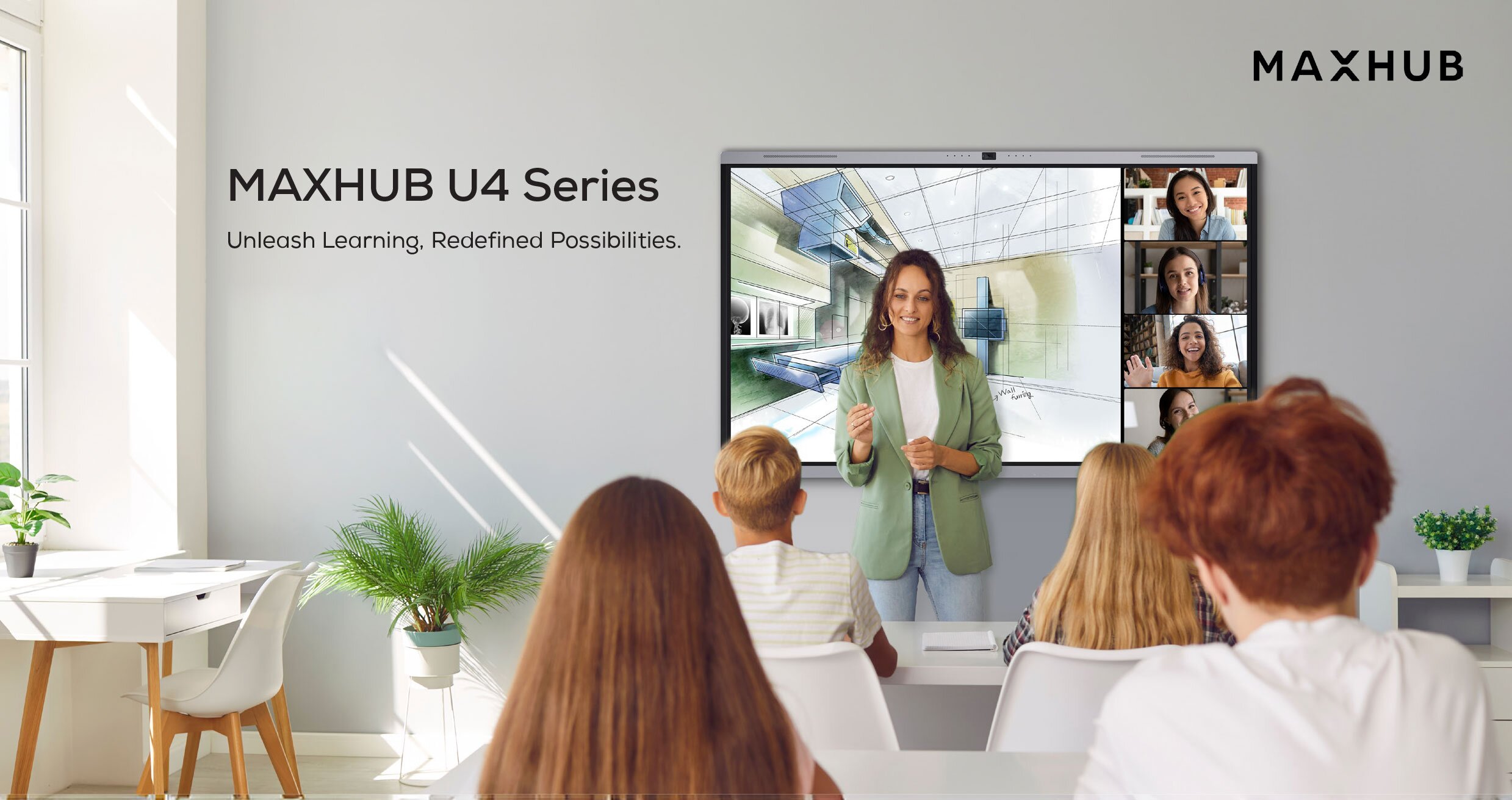

MAXHUB EDUCATION U4 SERIES COLLABORATION SOLUTION

UNLEASHING ADVANCED EYE CARE SOLUTION Prioritize eye health without compromising visual brilliance. Our displays feature hardware-level low blue light technology, TÜV-certified for superior eye protection. Combined with flicker-free DC dimming, you can enjoy long hours of comfortable viewing without the strain and fatigue associated with traditional screens. Learn more, see more, and protect your vision.

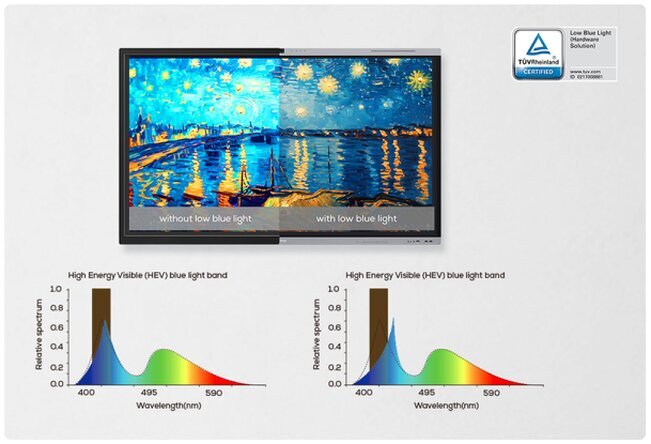

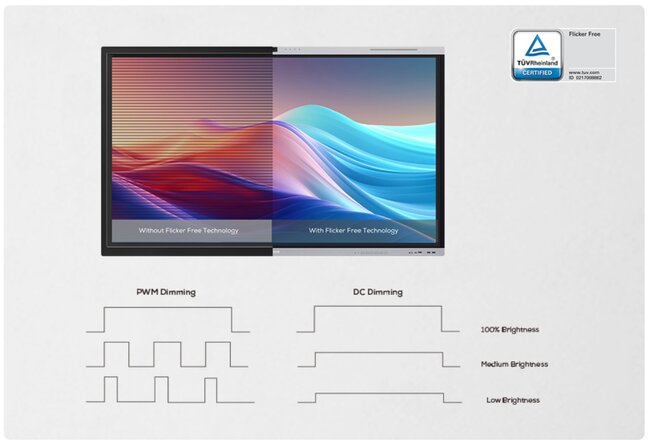

Flicker-Free, Future-Proof Tired of flickering screens causing eye strain and headaches? Unlike PWM dimming, which uses rapid on/off cycles, DC dimming adjusts brightness directly, eliminating flicker and reducing eye strain. TÜV Flicker-Free certified for superior performance.	Low Blue Light Engineered for eye comfort, this display takes a multi-faced approach to reducing eye strain. TÜV-certified for low blue light, it effectively filters harmful blue light (400-450nm). The ultra-low blue light irradiance ratio of 11.25% further minimizes eye strain.

UNLEASHING THE POWER OF AI
EXCELLENCE

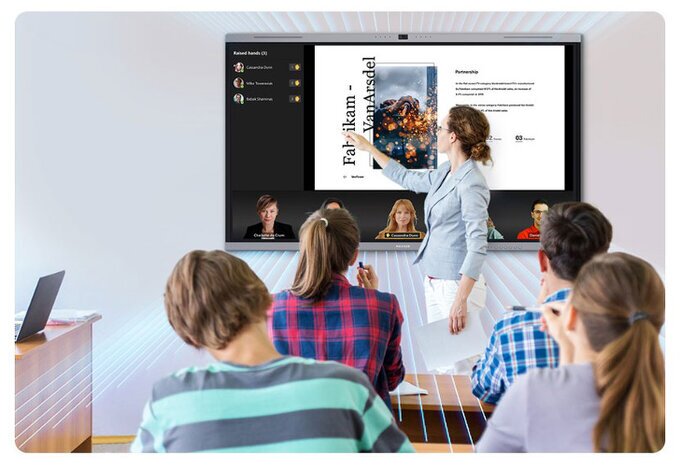

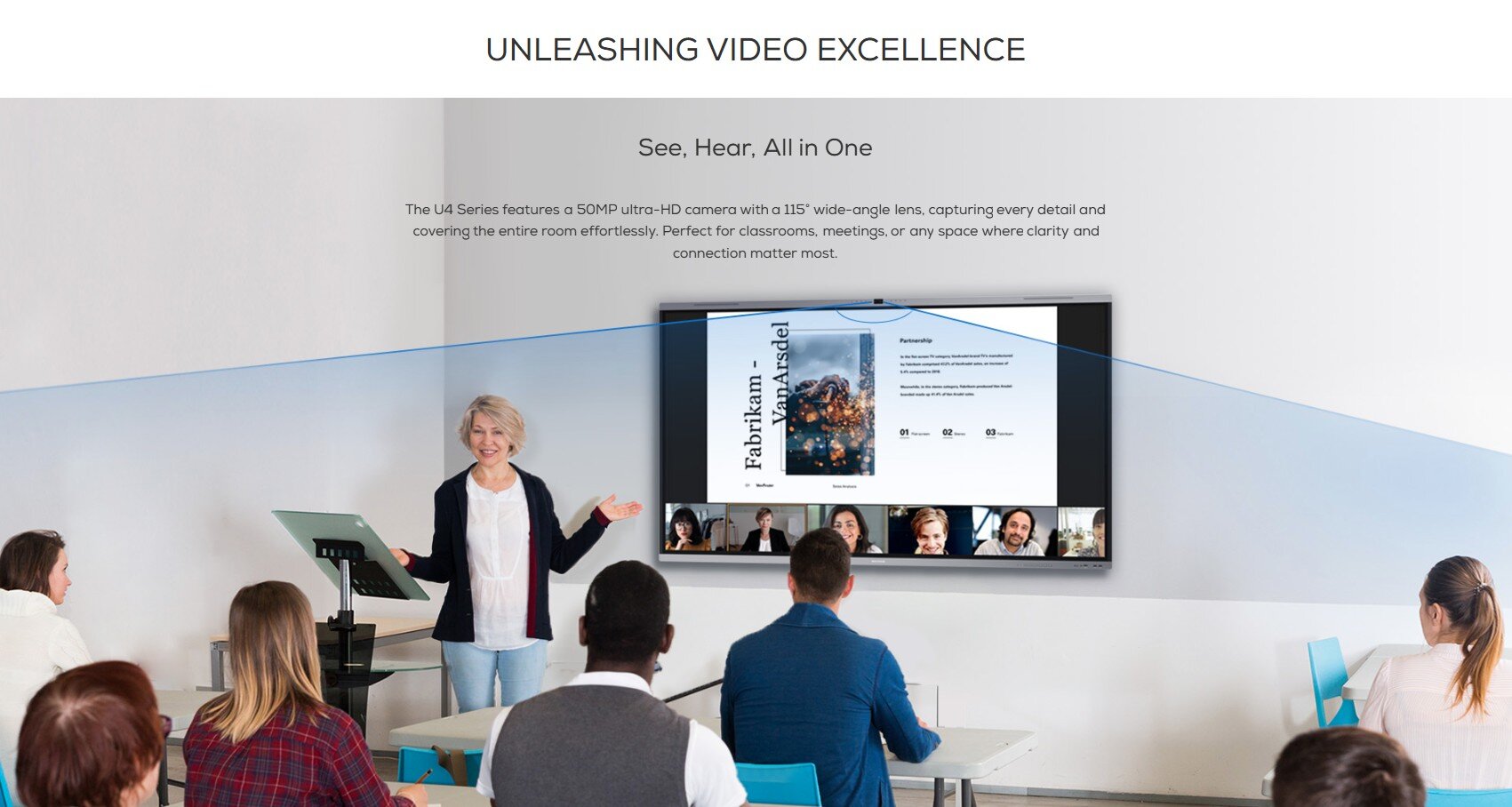

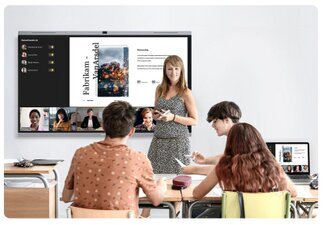

	Auto Framing By leveraging auto-framing, the display adapts to the number of participants and their location, delivering an optimal angle for a face-to-face interaction experience.		Speaker Tracking Speaker-tracking technology locates the sound source in real time, ensuring the speaker is always the center of attention.

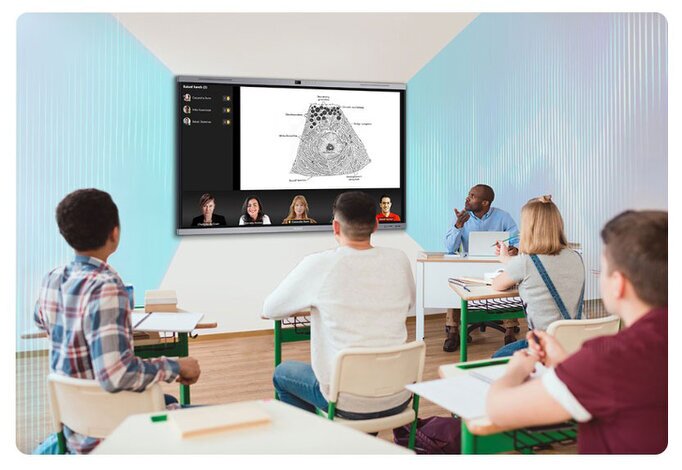

	Facial Recognition Make every classroom session more engaging and efficient with smart facial recognition. The camera captures the classroom in real-time, identifies students, calculates attendance, and even randomly selects participants to add an element of surprise and fun to lessons. Whether it’s tracking attendance, answering questions, or participating in interactive activities, this feature keeps students attentive while simplifying classroom management for teachers.		BYOD With BYOD (Bring-Your-Own-Device), you can seamlessly connect your personal device to the display using a Wireless Dongle, MAXHUB Connect software, or a USB-C cable. Leverage the display’s advanced camera, microphone, and speakers for an unparalleled collaboration experience.

AI Spatial Sound

Automatic Gain Control (AGC) ensures there’s no need to adjust the volume during meetings — the system does it for you. Everyone’s voice is heard perfectly, making communication effortless.

Automatic Gain Control

Automatic Gain Control (AGC) ensures there’s no need to adjust the volume during meetings — the system does it for you. Everyone’s voice is heard perfectly, making communication effortless.

Auto Echo Cancellation

Echo cancellation eliminates reflected sounds—even in enclosed spaces—ensuring your voice always comes through crisp and clear. Every word stays distinct, making conversations flow smoothly and naturally.

AI Spatial Sound

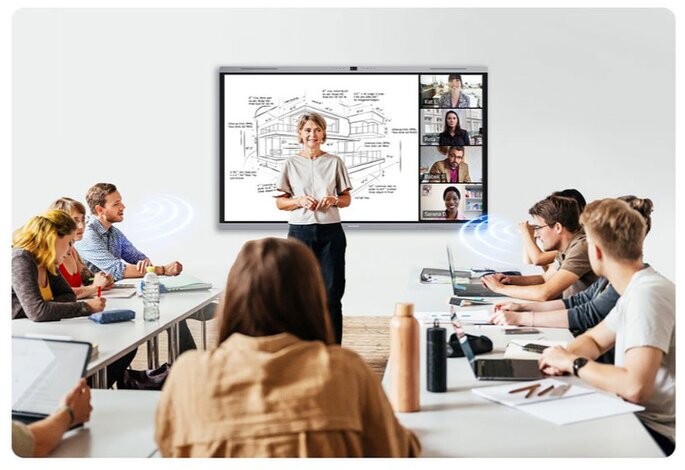

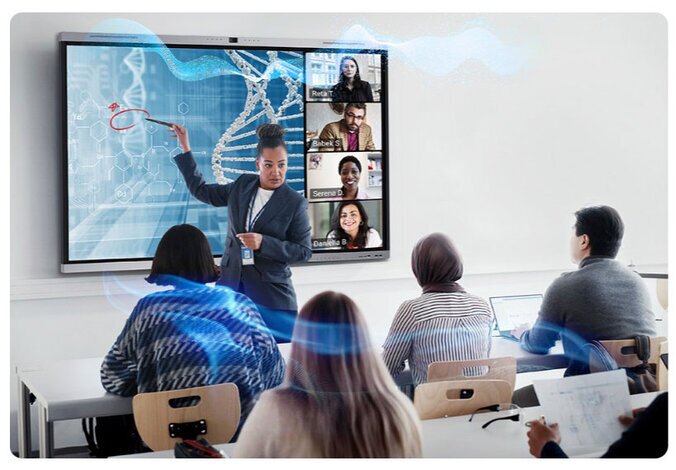

With 8 array microphones spanning a 180° and boasting an 12-meter voice pickup range, coupled with its AI Noise Cancellation technology, the MAXHUB U4 Series ensures crystal-clear voice transmission for all participants.

AI Spatial Sound

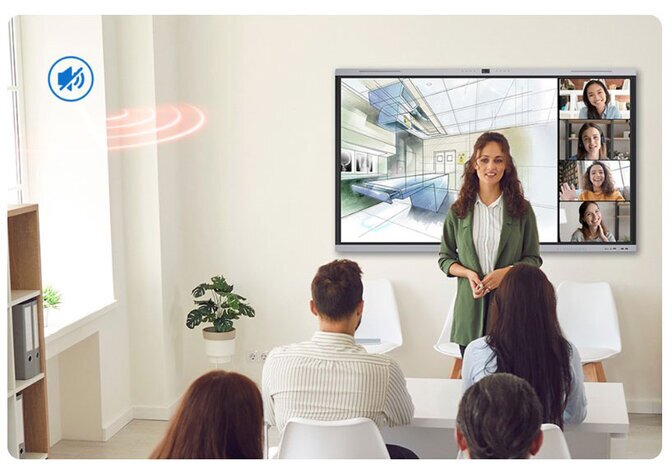

Where clarity meets intelligence. Adaptive EQ modes and AI noise cancellation craft a virtual sound barrier, filtering out external distractions. Experience conversations where every word matters—free from the disruptions of the outside world.

MAXHUB Education U4 Series The Google Ecosystem With the EDLA-certified operating system U4 Series, you can access Google's expansion suite of apps freely and securely. Its built-in collaboration tools and intuitive operating system ensures a smooth and hassle-free start. *EDLA stands for Google's Enterprise Devices Licensing Agreement.	MaxHub Interactive Flat Panel U3 Series The ultimate board for education. Redefining the teaching and learning experience, this flagship offering empowers educators and learners alike to unloack the infinite possibilities of knowledge.
	U6540	U7540		U8640
	Education Interactive Series
Diagonal Size (inch)	65"	75"		86"
Display Area	1428.48(H) × 803.52(V) mm	1650.24(H) × 928.26(V) mm		1895.04(H) × 1065.96(V) mm
Backlight \| Panel Technology \| Screen Level	Direct-lit LED \| VA \| A-Level
Aspect ratio \| Resolution	16:9 \| 3840 x 2160
Response Time \| Refresh Rate	6.5ms \| 60Hz			8ms \| 60Hz
Contrast Ratio \| Brightness	5,000:1(Typ.) / 50,000:1(Dynamic), 500 nits			1,200:1(Typ.) / 50,000:1(Dynamic), 500 nits
Glass	Zero parallax, 3mm thickness, 9H tempered, Non-glare, 25% haze, Etched-AG Technology
Sensor	Ambient light sensor, Ambient color temperature sensor
Viewing Angle \| Backlight Life	H178°/ V178° \| >60,000 Hours
Color Accuracy \| Color Depth \| Color Gamut	Delta E < 1 \| 1.07B (10bit) \| 98% sRGB
Eyes Care	TÜV Low Blue Light, TÜV Flicker Free
Anti-bacterial	TÜV / SGS/ SIAA Certified
	Touch System
Max Touch Points Supported	Infrared recognition 50 Touch Points
Object Recognition Range \| Accuracy	1.5mm \| +0.5mm
Response Time \| Writing Height	<2.5ms \| <1m
MAXHUB Think&Ink	Direct Annotation / Palm Rejection / Sharp Erase / Erase and Write Simultaneously / Multi-level Object Recognition / Single Pen Dual Color
Supported OS (Touch Return)	Windows 11, 10,8,7/ Android/ Linux/ Mac OS X/ Chrome OS
	Built-in System

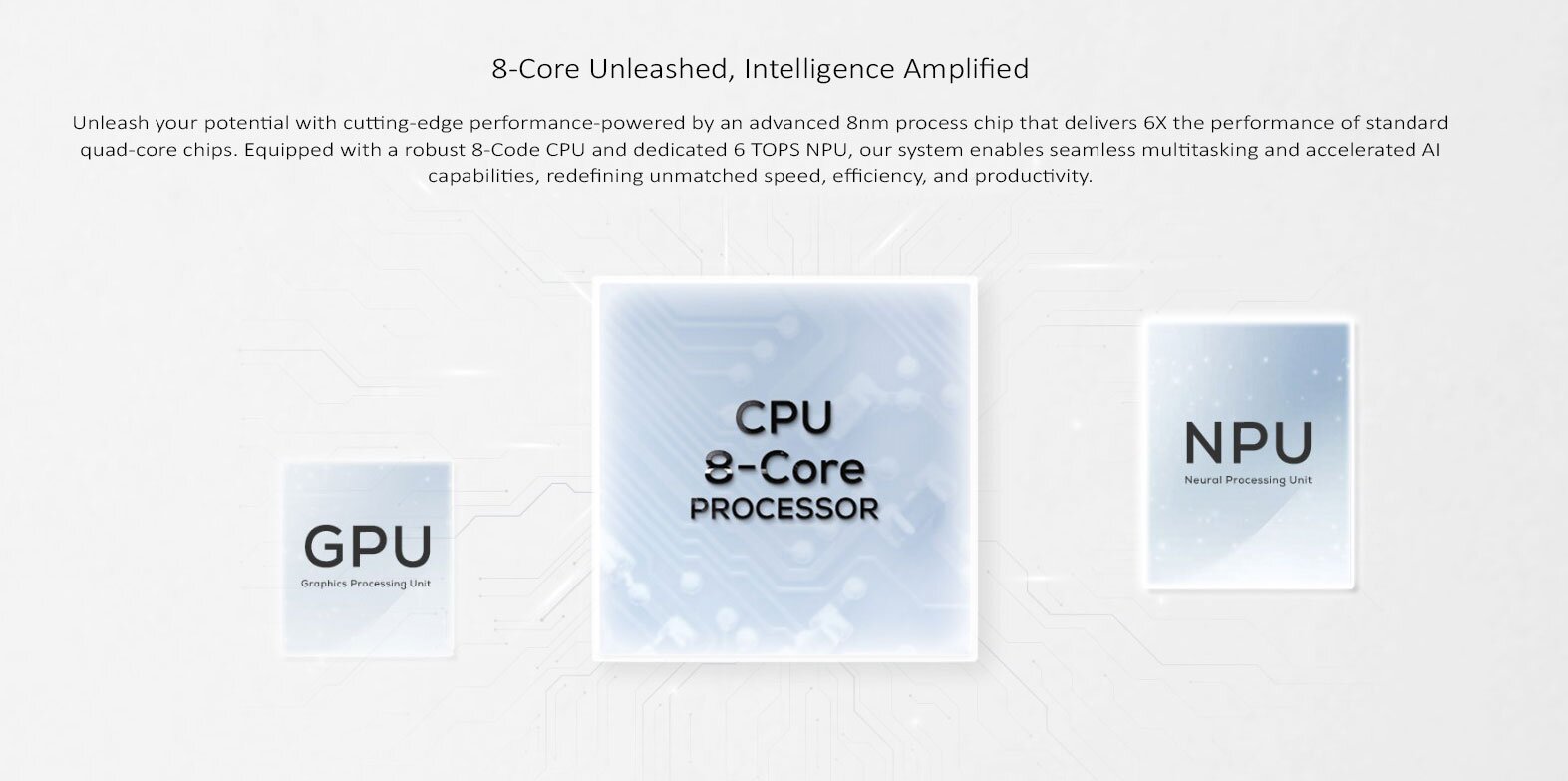

Operating System \| CPU	Android 15.0 Google EDLA certification CPU ARM A76x4+A55x4 Octa-core, 2.4Hz /GPU Mali-G610 MP4 /NPU 6 TOPS /RAM 16GB/ ROM 64GB /Soc Process 8nm
	Connectivity
Input	4x HDMI 4K@60Hz, HDCP 1.4, 2.2, 2.3, CEC, ARC (HDMI 1), 1x USB 2.0 System upgrades, 4x USB 3.0, 2x Touch 3.0, 2x USB Type-C Video and audio transmission, touch, charging, LAN network sharing, Front: up to 65W PD, Rear: up to 100W PD 1x DP 4K@30Hz HDCP 1.4, 2.2, 2.3, 1x LAN Wired RJ45/ 1x Wi-Fi 6 supported 1x Audio In, Bluetooth 5.2 1x TF Card Port Expandable to 1TB
Output	1x HDMI Out (4K@60fps), 1x USB Type-C (4K@60Hz), 2x Touch Out, 1x RJ45 1x Audio 3.5mm jack out, 1x S/PDIF PCM output format 1x RJ45 out
Control	1x RS232 Baud rate 9600
OPS Slot \| OPS Compatible	OPS Slot: 1x Module slot, WiFi Slot: 1x Module slot
	Audio
Built-in Speakers	Sky Wave Sound System Output: 2x8W+ 2x18W, Maximum: 2x12W+ 2x25W / Sound Channel: 2.2 Sound Pressure level 88dB (1W, 1m)
Built-in Microphone	8-Microphone array, Pick-up range 0-12m, Pick-up Angle 180° Features: Intelligent Audio Fence AI Spatial Sound AEC (Auto Echo Cancellation) ANC (AI Noise Cancellation) AGC (Auto Gain Control)
	Software
System OS \| Whiteboard Tool	MaxHub EDU OS V4.0 \| Maxhub Class Pro
Screen Share \| Device Management	MaxHub Connect \| Maxhub Pivot
On Board Apps	Google Apps: Google Play, Google Drive, Google Meet, Google Map, YouTube, etc. Other Apps: Browser, Cloud Drive, Note, Palette, etc.
	Accessory
Cables	3m Power Cord, 3m HDMI
Others	Remote Control, Wall Mount Bracket, 2x Stylus, Wireless Adapter SI07B
	Physical Specification
Dimension (W x H x D)	1488.4 x 909.4 x 97 mm	1709.4 x 1034 x 97 mm	1957 x 1172.7 x 97 mm
Gross Dimension (W x H x D)	1628 x 1020 x 185 mm	1863 x 1148 x 185 mm	2110 x 1291 x 185 mm
VESA	600 x 400mm, M7x56mm	800 x 400mm, M7x56mm	800 x 600mm, M7x56mm
Net Weight \| Gross Weight	35.90kg \| 45.35kg	48.10kg \| 58.10kg	58.90kg \| 72.20kg
	Optional Module
Optional Device	Camera: UC W31, UC P30, UC S07, OPS: OPS62A/OPS72A, Sensor Box: WL10C, Mobile Stand
