SA101 Android Digital Signage

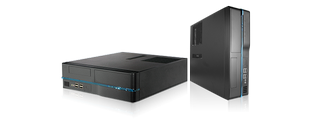

MS600H FEATURES SPEC

MS600H

Intel Digital Signage

Intel Core i7, 4-Core CPU

Display up 6 Screens

FEATURES

The DT Research MS600H Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient Intel Core™ i7 processor, the MS600H includes the latest graphics technology with up to 6 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS600H is capable of driving dynamic content on up to 6 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.

Drives up to 6 screens; Full-HD content supported on each screen
Support for multiple zones of content for each display wall
Content flexibility for image, flash and many multimedia file formats; stretched across multiple screens or played on a single screen
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)

SPECIFICATION

Multi Screen Appliance with Integrated WebDT Player Software included.
Manage up 6 ouput compatible displays.
Intel Core™ i7, 4-core processor
8GB DDR3 RAM and 500GB SATA HDD
Microsoft Windows Embedded Standard 7 64-bit
Display Resolution: 1920 x 1080 @ 60Hz (x 6)
Video Performance: 1080P x 6 @12mbps/30fps; 2160P x 2@60mbps/30fps
WebDT Content Manager Server Software included.
Setup zone 4x1/ 2x2/ 3x2
1 x HDMI/ 1 x DVI-I/ 1 x DisplayPort/ 10 x USB Port/ 1 x RJ45 LAN/ 4 mini-DisplayPort
(HDMI and DVI-I/DVI-I and DP/ HDMI and DP)/ 7 x 3.5mm Phone Jack/ 1 x Digital Output

SA101 Android Digital Signage

MS600S FEATURES SPEC

MS600S

Intel Digital Signage

Intel Core i7, 6-Core CPU

Display up 8 or 12 Screens

FEATURES

The DT Research MS1600S Multi Screen Appliance powers multiple screens for digital signage applications. Featuring the powerful and energy-efficient 6-core Intel® Core™ i7 processor, the MS1600S provides up to 8 or 12 video-out connectors for high-quality and optimal display experience. Combined with the industry-leading WebDT Content Manager software, one MS1600S is capable of driving dynamic content on up to 12 screens, while communicating with the server for continuous updates. These screens can be configured into one large video wall or they can be spread out to several separate areas. Each screen has the ability to deliver up to 1920 x 1080 (Full-HD) resolution.

Drives up to 8 or 12 screens; Full HD content supported on each screen
Support for multiple zones of content for each display wall
Content flexibility for image, flash and many multimedia file formats; stretched across multiple screens or played on a single screen
Support for numerous media formats (e.g., images, videos, Flash, URL, RSS, PowerPoint)

SPECIFICATION

Multi Screen Appliance with Integrated WebDT Player Software included.
Manage up 8 or 12 ouput compatible displays.
Intel® Core™ i7, 6-core processor
8GB DDR3 RAM and 500GB SATA HDD
Microsoft Windows Embedded Standard 7 64-bit
Display Resolution: 1920 x 1080 @ 60Hz (x 8 or 12)
Video Performance: 1080P x 8 or 12 @ 12mbps/30fps; 2160P x 3 @ 60mbps/30fps
WebDT Content Manager Server Software included.
Setup zone 4x1/ 2x2/ 3x2
1 x HDMI/ 1 x DVI-I/ 1 x DisplayPort/ 6 x USB 2.0, 6 x USB 3.0 Port/ 1 x RJ45 LAN/ 8 or 12 mini-DisplayPort
(Mini-DP to DP/ DVI/ HDMI)/ 5 x 3.5mm Phone Jack/ 1 x Digital Output
