HDMI VIDEO BOOSTER

REXTRON
HDMI Video Booster



VBSTM-AK01LW RM 353.00
VBSTM-AK01LR RM 353.00


  • Extend HDMI signal up to 15M @ 4Kx2K or 25M @ 1080p
  • Automated EQ adjustment for optimal signal clarity
  • No external power supply required
  • HDTV, 3D HDTV, HDCP compliant and Blu-ray ready
  • Compliant with HDMI v1.4b


HDMI Video Booster
MODEL
VBSTM-AK01LW
VBSTM-AK01LR
 Front Plate
1 x HDMI Input Source
1 x HDMI Monitor Out
 Rear Plate
1 x HDMI Monitor Out
1 x HDMI Input Source
 Video Resolution (max)
25M @ Full HD (1920 x 1200)
15M @ UHD (3840 x 2160)
 TMDS Clock Rate (Max.)
300 MHz
 Power SupplyPower by HDMI Input
(Optional power supply port at rear plate)
 H x W x D (mm)
22 x 51 x 80
 Weight (g)
106

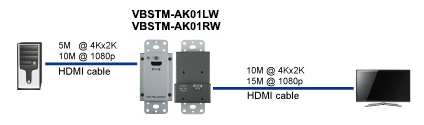

 Connection Diagram
