HDMI-VGA-DP Switch Transmitter

DISTRIBUTION AMPLIFIER

HDMI-Display Port-VGA-Audio HDBaseT Switch Transmitter

EVBMC-1471L/ 1491L

1 Year Standard Warranty

Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428
sales@3wiredsys.com

for Consultation,

Technical enquiries,
Recommendation or Demo

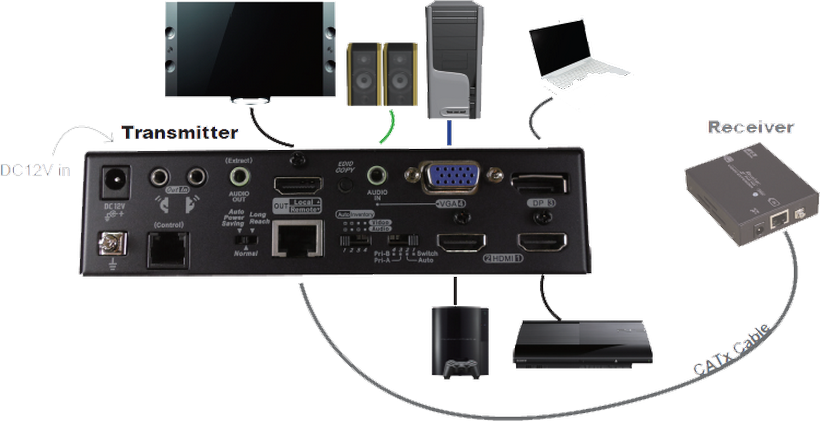

PRODUCT FEATURES DIAGRAM

HDMI + VGA + DP HDBaseT Switch TRANSMITTER EVBMC-1471L RM 2,519.00 support up to 70m EVBMC-1491L RM 2,933.00 support up to 100m		TRANSMITTER (TX)
	MODEL	EVBMC-1471L	EVBMC-1491L
	INPUT PORT	2 x HDMI, Display Port (DP), VGA, Analog Stereo
	OUTPUT PORT	HDMI Local, Analog Stereo Local
	CONNECTION	RJ45
	LED (Link/ Video Status)	1 x Remote LED/ 1 x Local LED/ 4 x Source LED
	VIDEO RESOLUTION (max)	VGA: Full HD 19280x1080 HDMI/ DP: 4K2K UHD 3840x2160
	DISTANCE SUPPORT	HDMI/ DP 70m @Full HD 1920x1080 30m @UHD 3840x2160 VGA 70m @Full HD 19280x1080	HDMI/ DP 100m @Full HD 1920x1080 70m @UHD 3840x2160 VGA 100m @Full HD 19280x1080
	EDID Configuration Switch	Video\| Audio: Auto/ Inventory
	PUSH BUTTON	4 x Input Selection, Function, Remote, Local, EDID Copy
	IR EXTENSION	IR Transceiver/ IR Receiver
	MODE Configuration	Switch/ Auto/ Pri-A/ Pri-B
	LINK Port Configuration	Auto Power Saving/ Normal/ Long Reach
	POWER SUPPLY	DC 12V
	Use 24AWG solid cable without cascade. STP cabling is recommended for environment with high EMI or RFI for best performance results. Avoid using stranded, thinner and excess coiling cables.

HDMI + Display Port + VGA + Audio Switch over HDBaseT Transmitter

TRANSMITTER

EVBMC-1491L (100m)

EVBMC-1471L (70m)

Send HDMI signal to multimedia display over CAT5e/ 6 cable distance up to 100m/ 70m
Transmit full uncompressed HD video and audio over cable
Low cost standard CAT5e/ 6 LAN cable; advanced and inexpensive all-in-one connectivity technology
Support Phamtom Power- single power supply usage
Front panel push button control, IR remote control, GUI operation, Serial Control
Individually turn ON/ Off output port
HDTV, 3D HDTV compatible; HDCP compliant and Blu-ray ready
Support resolution up to Full HD 1080p/ 2048 x 1152
Support Deep Color and HD Audio format
Application Usage: Hotels, Conference Room, Digital Signage, Surveillance Cameras, Home Networking, Point-to-Point Application

Exclusive EDID Functions

Multi-functions for EDID setting, like EDID Copy and EDID Pre-setting, ensuring accurate output display
Enable seperately lean Audio and Video EDID for multimedia/ Home Theater system integration
Read and store the EDID from the connecting display to the video extension

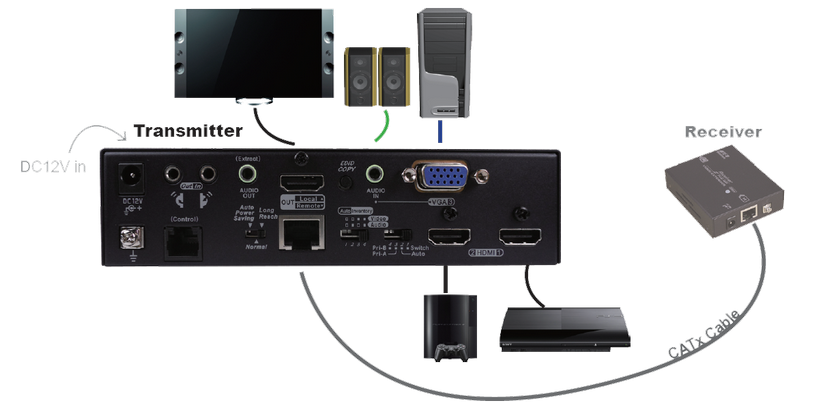

HDMI-VGA-Audio HDBaseT Switch Transmitter
