PANASONIC HIGH ANSI LUMENS PROJECTOR

PROJECTOR > PANASONIC
Call Online Special price 03-8069 1655/ 03-8069 1755/ 012-307 0594/ 012-305 2428 sales@3wiredsys.com
DATASHEET


PT-DX820BA/ DW750BA
PT-DZ780BA


PT-DX100EK/ DW830EK
PT-DZ870EK

Free Delivery within Klang Valley

ACCESSORIES
Wireless Presenter



Knorvay RM 90
Logitech R400  RM 120
WARRANTY

3 years warranty against manufacturing defects or 1,000 hours whichever come first
Prices are subject to changes without prior notice

     F I X E D     I N S T A L L A T I O N     1     C H I P     S E R I E S
LARGE CONFERENCE
DLP SUPER HIGH BRIGHTNESS

  MODEL

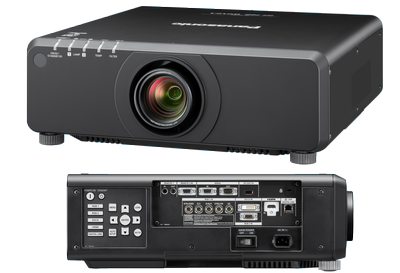

PT-DX820BA    RM 29,000.00
PT-DW750BA   RM 29,000.00
 ANSI LUMENS
8200 Dual Lamp
7000 Dual Lamp
 IMAGE SIZE | ASPECT RATIO
50" - 600" | 4:3
50" - 600" | 16:10
 CONTRAST RATIO | RESOLUTION
2,400:1 | XGA 1024 x 768
3,000:1 | WXGA 1280 x 800
 CONNECTION INPUT
Display: HDMI, DVI-D, BNC x 5, RGB
 CONNECTION OUTPUT

 CONTROL
D-Sub 9 pin x 3: Female RS-232C in, Female external control, Male link control out
3.5mm Jack x 2:  Wired remote control In/ Out
RJ45 for Digital Link connection | USB: DC out (5V/0.9A)
 WEIGHT
39.2kg
 FEATURES
Optional: Lens ET-DLE055 (Diagonal: 50"-200"), Lens ET-DLE030 (Diagonal: 100"-350")
Geometric | Edge Blending | Stacking
LARGE CONFERENCE
DLP SUPER HIGH BRIGHTNESS

MODEL
PT-DZ780BA   RM 54,000.00
 ANSI LUMENS
7000 Dual Lamp
 IMAGE SIZE | ASPECT RATIO
50" - 600" | 16:10
 CONTRAST RATIO | RESOLUTION
3,000:1 | WUXGA 1920 x 1200
 CONNECTION INPUT
Display: SDI (BNC), HDMI, DVI-D, BNC x 5, RGB
 CONNECTION OUTPUT

 CONTROL
D-Sub 9 pin x 3: Female RS-232C in, Female external control, Male link control out
3.5mm Jack x 2:  Wired remote control In/ Out
RJ45 for Digital Link connection | USB: DC out (5V/0.9A)
 WEIGHT
39.2kg
FEATURES
Optional: Lens ET-DLE055 (Diagonal: 50"-200"), Lens ET-DLE030 (Diagonal: 100"-350")
Geometric | Edge Blending | Stacking
LARGE CONFERENCE
DLP SUPER HIGH BRIGHTNESS

MODEL

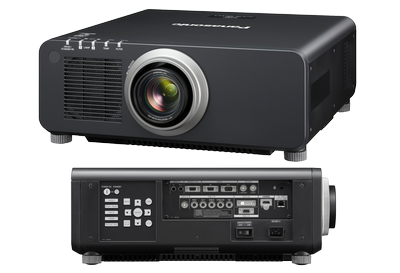

PT-DX100EK   RM 38,500.00
PT-DW830EK   RM 35,000.00
ANSI LUMENS
10000 Dual Lamp
8500 Dual Lamp
IMAGE SIZE | ASPECT RATIO
50" - 600" | 3:4
50" - 600" | 16:10
CONTRAST RATIO | RESOLUTION
10,000:1 | XGA 1024 x 768
10,000:1 | WXGA 1280 x 800
CONNECTION INPUT
Display: HDMI, DVI-D, BNC x 5, RGB, 3D SYNC x 2: BNC in/out, BNC out,
BNC (composite video)
CONNECTION OUTPUT

CONTROL
D-Sub 9 pin x 2: RS-232C, External remote control
3.5mm Jack:  Wired remote control
RJ45 for Digital Link connection
WEIGHT
18.3kg
FEATURES
Optional: Lens ET-DLE055 (Diagonal: 50"-200"), Lens ET-DLE030 (Diagonal: 100"-350")
Geometric | Edge Blending | Stacking
LARGE CONFERENCE
DLP SUPER HIGH BRIGHTNESS

MODEL
PT-DZ870EK    RM 63,000.00
ANSI LUMENS
8500
IMAGE SIZE | ASPECT RATIO
50" - 600" | 16:10
CONTRAST RATIO | RESOLUTION
10,000:1 | WUXGA 1920 x 1200
CONNECTION INPUT
Display: SDI (BNC), HDMI, DVI-D, BNC x 5, RGB, 3D SYNC x 2: BNC in/out, BNC out, BNC (composite video)
CONNECTION OUTPUT

CONTROL
D-Sub 9 pin x 2: RS-232C, External remote control
3.5mm Jack:  Wired remote control
RJ45 for Digital Link connection
WEIGHT
18.3kg
FEATURES
Optional: Lens ET-DLE055 (Diagonal: 50"-200"), Lens ET-DLE030 (Diagonal: 100"-350")
Geometric | Edge Blending | Stacking
