HDMI-VGA-DP Switch Transmitter

DISTRIBUTION AMPLIFIER
 HDMI-Display Port-VGA-Audio HDBaseT Switch Transmitter


EVBMC-1471L/ 1491L

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo




HDMI + VGA + DP HDBaseT Switch TRANSMITTER


EVBMC-1471L


EVBMC-1471L   RM 2,519.00
support up to 70m

EVBMC-1491L   RM 2,933.00
support up to 100m

TRANSMITTER (TX)
MODEL
EVBMC-1471L
EVBMC-1491L
  INPUT PORT2 x HDMI, Display Port (DP), VGA, Analog Stereo
  OUTPUT PORT
HDMI Local, Analog Stereo Local
 CONNECTION
RJ45
  LED (Link/ Video Status)1 x Remote LED/ 1 x Local LED/ 4 x Source LED
  VIDEO RESOLUTION (max)VGA: Full HD 19280x1080
HDMI/ DP: 4K2K UHD 3840x2160
  DISTANCE SUPPORT
HDMI/ DP
70m @Full HD
1920x1080
30m @UHD 3840x2160

VGA
70m @Full HD 19280x1080
HDMI/ DP
100m @Full HD 1920x1080
70m @UHD 3840x2160

VGA
100m @Full HD 19280x1080
  EDID Configuration Switch
Video| Audio: Auto/ Inventory
  PUSH BUTTON4 x Input Selection, Function, Remote,
Local, EDID Copy
 IR EXTENSION
IR Transceiver/ IR Receiver
 MODE Configuration
Switch/ Auto/ Pri-A/ Pri-B
 LINK Port Configuration
Auto Power Saving/ Normal/ Long Reach
  POWER SUPPLY
DC 12V
       Use 24AWG solid cable without cascade. STP cabling is recommended for
       environment with high EMI or RFI for best performance results. Avoid using
       stranded, thinner and excess coiling cables.
 HDMI-VGA-Audio HDBaseT Switch Transmitter


EVBMV-1371L/ 1391L

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo




HDMI + VGA HDBaseT Switch TRANSMITTER

EVBMV-1371L


EVBMV-1371L   RM 1,932.00
support up to 70m

EVBMV-1391L   RM 2,341.00
support up to 100m

TRANSMITTER (TX)
MODEL
EVBMV-1371L
EVBMV-1391L
  INPUT PORT2 x HDMI + VGA + Analog Stereo
  OUTPUT PORT
HDMI Local + Analog Stereo Local
 COONECTION
RJ45
  LED (Link/ Video Status)1 x Remote LED/ 1 x Local LED/ 3 x Source LED
  VIDEO RESOLUTION (max)VGA: Full HD 19280x1080
HDMI/ DP: 4K2K UHD 3840x2160
  DISTANCE SUPPORT
HDMI/ DP
70m @Full HD
1920x1080
35m @UHD 3840x2160

VGA
70m @Full HD 19280x1080
HDMI/ DP
100m @Full HD 1920x1080
70m @UHD 3840x2160

VGA
100m @Full HD 19280x1080
  EDID Configuration Switch
Video| Audio: Auto/ Inventory
  PUSH BUTTON3 x Input Selection, Function, Remote,
Local, EDID Copy
 IR EXTENSION
IR Transceiver/ IR Receiver
 MODE Configuration
Switch/ Auto/ Pri-A/ Pri-B
 LINK Port Configuration
Auto Power Saving/ Normal/ Long Reach
  POWER SUPPLY
DC 12V
       Use 24AWG solid cable without cascade. STP cabling is recommended for
       environment with high EMI or RFI for best performance results. Avoid using
       stranded, thinner and excess coiling cables.

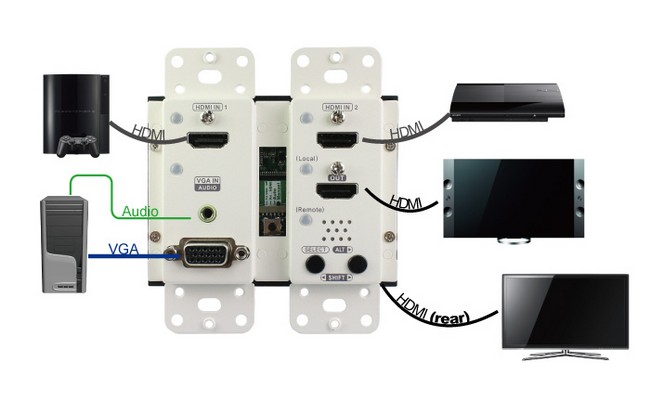

 HDMI-VGA-Audio HDBaseT Wall Panel Switch Transmitter


EVBMV-A1371WL/ 1391WL

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo




HDMI + VGA+ AUDIO HDBaseT Switch TRANSMITTER

EVBMV-A1371WL


EVBMV-A1371WL   RM 1,932.00
support up to 70m

EVBMV-A1391WL   RM 2,450.00
support up to 100m

TRANSMITTER (TX)
MODEL
EVBMV-A1371WL
EVBMV-A1391WL
  INPUT PORT2 x HDMI + VGA + Analog Stereo
  OUTPUT PORT
HDMI Local
 CONNECTION
RJ45
  LED (Link/ Video Status)1 x Remote LED/ 1 x Local LED/ 3 x Source LED
  VIDEO RESOLUTION (max)VGA: Full HD 19280x1080
HDMI/ DP: 4K2K UHD 3840x2160
  DISTANCE SUPPORT
HDMI/ DP
70m @Full HD
1920x1080
35m @UHD 3840x2160

VGA
70m @Full HD 19280x1080
HDMI/ DP
100m @Full HD 1920x1080
70m @UHD 3840x2160

VGA
100m @Full HD 19280x1080
 PUSH BUTTON
Select, Alt | EDID Copy (under the cover)
 MODE Configuration
Switch/ Auto/ Pri-A/ Pri-B
 SERIAL CONTROL Configuration
RJ-12
  POWER SUPPLY
DC 12V
       Use 24AWG solid cable without cascade. STP cabling is recommended for
       environment with high EMI or RFI for best performance results. Avoid using
       stranded, thinner and excess coiling cables.
