HDMI EXTENDER

DISTRIBUTION AMPLIFIER
HDMI EXTENDER


EVXM-M040/ EVXMS-M040

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo


HDMI CAT Extender
One-To-One Direct Connection

HDMI Extender Over Fiber with Audio



EVXMS-M040 (040L/R)    RM 3,133.00
with IR & Serial
Support 100m Distance


EVXM-M040 (040L/R)   RM 2,213.00
with IR
Support 100m Distance

MODELTRANSMITTER (TX)RECEIVER (RX)
EVXMS-M040
EVXMS-040L
EVXMS-040R
EVXM-M040
EVXM-040L
EVXM-040R
  INPUT PORT1 x HDMI1 x RJ45
  OUTPUT PORT
1 x RJ45
1 x HDMI
  IR EXTENSION1 x IR Transceiver
1 x IR Receiver
  SERIAL CONTROLSerial Port
  VIDEO RESOLUTION (max)
100m Distance, Full HD 1920 x 1080
  POWER SUPPLY
DC 9~12V, 1.5a
Phantom Power: single power supply usage on either TX or RX
  ENCLOSUREMetal
  H x W x D (mm)25 x 96 x 130
  WEIGHT (g)
440445
       Use 24AWG solid cable without cascade. STP cabling is recommended for
       environment with high EMI or RFI for best performance results. Avoid using
       stranded, thinner and excess coiling cables.
HDMI EXTENDER SHORT HAUL - 50m


SHM-M200

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo


HDMI CAT Extender
One-To-One Dual RJ45 Direct Connection


SHM-M200



SHM-M200 (M200R/L)   RM 585.00
Support 50m Distance


MODELTRANSMITTER (TX)RECEIVER (RX)
SHM-M200
SHM-M200L
SHM-M200R
  INPUT PORT1 x HDMI2 x RJ45
  OUTPUT PORT
2 x RJ45
1 x HDMI
  VIDEO RESOLUTION (max)
50m CAT5e @ 1080i (8bit x 3)
30m CAT5e @ 1080p (8bit x 3)
60m CAT6 @ 1080i (8bit x 3)
40m CAT6 @ 1080p (8bit x 3)
  EDID CCOPYEDID Copy (Manual/ Auto)
  POWER SUPPLY
DC 9~12V, 1.5a.  Phantom Power -
single power supply usage on either TX or RX
  ENCLOSUREMetal
  H x W x D (mm)22 x 51 x 80
  WEIGHT (g)
155 ~ 165g
    Use 24AWG solid cable without cascade. STP cabling is recommended for
    environment with high EMI or RFI for best performance results. Avoid using
    stranded, thinner and excess coiling cables.
HDMI EXTENDER SHORT HAUL with 4-USB PORT - 50m


SHMU-M250

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo
HDMI CAT Extender
One-To-One Dual RJ45 Direct Connection
with 4 x USB


SHMU-M250



SHMU-M250 (M250R/L)   RM 1,148.00
Support 60m Distance
MODELTRANSMITTER (TX)RECEIVER (RX)
SHMU-M250
SHMU-M250L
SHMU-M250R
  INPUT PORT1 x HDMI2 x RJ45
  OUTPUT PORT
2 x RJ45
1 x HDMI
 VIDEO RESOLUTION (max)
50m CAT5e @ 1080i (8bit x 3)
30m CAT5e @ 1080p (8bit x 3)
60m CAT6 @ 1080i (8bit x 3)
40m CAT6 @ 1080p (8bit x 3)
  EDID COPY1 x Mini USB4 x USB Type A
  POER SUPPLY
USB BUS Power (DC 5v each unit)
  ENCLOSUREMetal
    Use 24AWG solid cable without cascade. STP cabling is recommended for
    environment with high EMI or RFI for best performance results. Avoid using
    stranded, thinner and excess coiling cables.
HDMI EXTENDER SHORT HAUL - 30m


REX-CATHDMI-D30IR

6 Months Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo

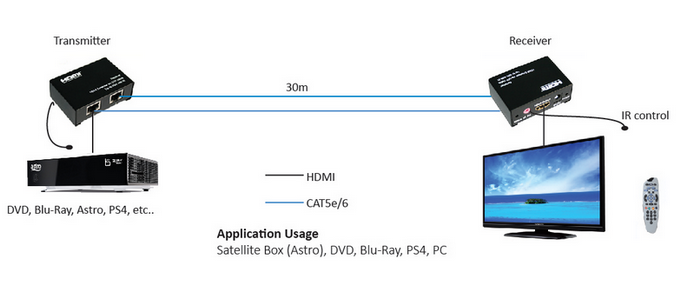

HDMI CAT Extender
One-To-One Dual RJ45 Direct Connection
with IR
HDMI CAT Extender

REX-CATHDMI-D30IR
RM 180.00
Transmitter & Receiver
Support 30m Distance
MODELTRANSMITTER (TX)RECEIVER (RX)
REX-CATHDMI-D30IR
REX-CATHDMI-SX30T
REX-CATHDMI-SX30R
  INPUT PORT1 x HDMI2 x RJ45
  OUTPUT PORT
2 x RJ45
1 x HDMI
  VIDEO RESOLUTION (max)
30m CAT5e/ CAT6 @ 1080i/ 1080p
  IR SUPPORT1 x IR Transmitter
1 x IR Receiver
  POWER SUPPLY
No Power adapter require
  ENCLOSUREMetal
    Use 24AWG solid cable without cascade. STP cabling is recommended for
    environment with high EMI or RFI for best performance results. Avoid using
    stranded, thinner and excess coiling cables.
HDMI EXTENDER WALL PLATE SHORT HAUL - 45m


SHM-MG255WW

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo
Wall Plate HDMI CAT Extender
One-To-One Connection



SHM-MG255WW



SHM-MG255WW (TX & RX)   RM 908.00
Support 45m Distance
MODELTRANSMITTER (TX)RECEIVER (RX)
SHM-MG255WW
SHM-A250WL
SHM-A250WR
  INPUT PORT1 x HDMI8-pin screwed Cat5e/ CAT6
  OUTPUT PORT
8-pin screwed Cat5e/ CAT6
1 x HDMI
  VIDEO RESOLUTION (max)
45m CAT5e @ 1080i
25m CAT5e @ 1080p
55m CAT6 @ 1080i
35m CAT6 @ 1080p
  POWER SUPPLY
No power require
Single power supply
  ENCLOSUREWall Mounted
    Use 24AWG solid cable without cascade. STP cabling is recommended for
    environment with high EMI or RFI for best performance results. Avoid using
    stranded, thinner and excess coiling cables.
HDMI EXTENDER WALL PLATE SHORT HAUL - 50m


SHM-MA250WW

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo

Wall Plate HDMI CAT Extender
One-To-One Connection
SHM-MA250WW
SHM-MA250WW (A250WL/ WR)   RM 854.00
Support 50m Distance

MODELTRANSMITTER (TX)RECEIVER (RX)
SHM-MA250WW
SHM-A250WL
SHM-A250WR
  INPUT PORT1 x HDMI2 x RJ45
  OUTPUT PORT
2 x RJ45
1 x HDMI
  VIDEO RESOLUTION (max)
50m CAT5e @ 1080i
30m CAT5e @ 1080p
60m CAT6 @ 1080i
40m CAT6 @ 1080p
  POWER SUPPLY
Phamtom power - single power supply at either one end of the two units
  ENCLOSUREWall Mounted
    Use 24AWG solid cable without cascade. STP cabling is recommended for
    environment with high EMI or RFI for best performance results. Avoid using
    stranded, thinner and excess coiling cables.
