HDMI HDBaseT Wall Plate Extender

DISTRIBUTION AMPLIFIER
HDMI HDBaseT Wall Interface Extender 4K2K


EVBMR-A107WL/ A110WL
(with IR)

1 Year Standard Warranty


Call or Email for
Online Special price

03-8069 1655/ 03-8069 1755
012-307 0594/ 012-305 2428

sales@3wiredsys.com

for Consultation,
Technical enquiries,
Recommendation or Demo


HDBaseT Extender

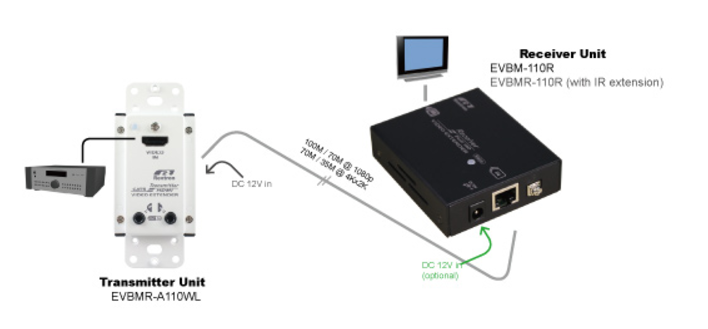

Wall Plate One-To-One Direct Connection
(with IR)

EVBMR-A107WD



EVBMR-A107WD (A107WL/ 107R)    RM 1,601.00
Support 70m Distance


EVBMR-A110WD (A110WL/ 110R)  RM 2,488.00
Support 100m Distance
MODELTRANSMITTER (TX)RECEIVER (RX) Box Type
EVBMR-A107WD
EVBMR-A107WL
EVBMR-107R
EVBMR-A110WD
EVBMR-A110WL
EVBMR-110R
  INPUT PORT1 x HDMI1 x RJ45
  OUTPUT PORT
1 x RJ45
1 x HDMI
  IR EXTENSION1 x IR Transceiver/ 1 x IR Receiver
  VIDEO RESOLUTION (max)4K2K UHD 3840 x 2160
  DISTANCE SUPPORT
70m (Full HD 1920 x 1080)
35m (4K2K UHD 3840 x 2160)
100m (Full HD 1920 x 1080)
70m (4K2K UHD 3840 x 2160)
  POWER SUPPLY
DC 12V / Phantom Power-
single power supply usage on either TX or RX
  ENCLOSUREMetal
  H x W x D (mm)
43.5 x 45 x 104
23 x 80 x 67

     Use 24AWG solid cable without cascade. STP cabling is recommended for
      environment with high EMI or RFI for best performance results. Avoid using
      stranded, thinner and excess coiling cables.
